JPMX-301BProduct InformationProduct ImageProduct IntroductionJPMX-301B has three
For on-site and rooftop busbar work in Saudi Arabia the combined LTMC-30 portable set is the LTMC recommendation, because it brings punching, shearing and bending to the busbar instead of bringing the busbar to a workshop machine. Rated oil pressure is 630 kN with 150 mm maximum processing width and 10 mm maximum thickness on the LTMC-30A head, and the whole set runs from an ordinary 220 V / 50 Hz single-phase supply, so it can be used during construction, transmission and distribution work, and inside electrical manufacturing plants. Standard dies cover ¢10.5, ¢13.8, ¢17 and ¢20.5 mm. At 165 kg for the base unit it is movable between floors and buildings without crane access. Choose the head size, die set and voltage against the busbar sections in your purchase specification.
LJMC-30A
Product Information
Product Image
Product Introduction

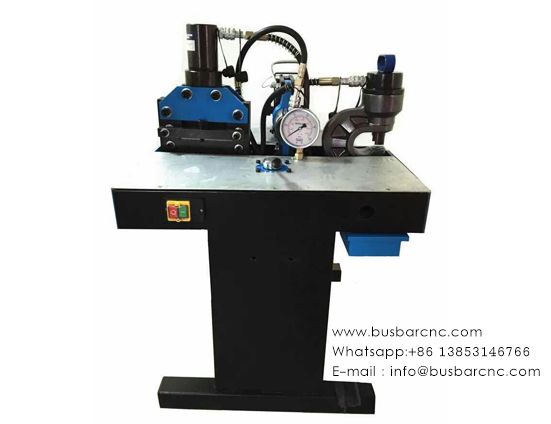

LJMC-30A has three processing units: punching, shearing/cutting and bending. And it's mainly used for processing copper and aluminum busbar in differernt specifications.
]
Product Processing Samples
PUNCHING / CUTTING / BENDING
The max. processing width is 200mm.
The max. processing thickness is 12mm.
Product Application
The machine uses a single-phase 220v ordinary power supply, which can be used in any occasion, such as on-site construction of large workshops, transmission, distribution work, electrical manufacturing plants such as power distribution cabinets and switch canbinets.
High and low voltage switchgear, substation, busway, bridge, electrical switch, communication equipment, household appliances, shipbuilding, office automation equipment, elevator manufacturing, chassis manufacturing and other electrical equipment manufacturing industry. Most suitable for making large electric control box and transmission and distribution construction project construction site use.
Single Processing unit
Company Advantages
Our Factory
We have professional engineers to serve you form the beginning to the end.
We can guarantee the product quality and service quality.
Our Certifications
Our Business Partner
Such ABB, Siemens, Schneider and EDK.
Our Visitors
Our products are sold in more than 100 countries all around the world.
Including the United States, Britain, Germany, Russia, Canada, Belgium, Argentina, New Zealand, Czech Republic, Romania, Ireland, Peru, Chile, Australia, Hungary, Mexico, Slovenia, Malaysia, Brazil, Vietnam, Saudi Arabia, Pakistan, etc.
Due to its superior product performance, powerful functions, stable quality, and timely after-sales service, it has won unanimous praise from customers, also has achieved long-term cooperation and has always maintained friendly contacts.
| Item | Model |
| LJMC-30A | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 200 |
| Max. processing thickness (mm) | 12 |
| Out dimension (mm) | 900×700×1160 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 990×760×1320 |
| Machine weight (kg) | 195 |
Hot Tags: three portable busbar processing machines combined LJMC-30A copper busbar processing, China, suppliers, manufacturers, factory, price
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: relocating the machine between floors or buildings on a GCC site without crane access. Specified value: 165 kg base unit weight and a 700 × 700 × 1100 mm envelope, driven from a 220 V / 50 Hz supply. Comparison baseline: a fixed 1220–2100 kg 3-in-1 workshop machine such as the LTMC 303U-3-C, which stays on its own foundation and cannot be taken to the work face.
Test conditions: 630 kN rated oil pressure applied to copper and aluminium busbar on the LTMC-30A head. Specified value: 630 kN rated oil pressure with 150 mm maximum processing width and 10 mm maximum processing thickness. Comparison baseline: the LTMC-30B head, published at 200 mm maximum width and 12 mm maximum thickness at the same 630 kN, for contractors who need the larger envelope in the same portable format.
Test conditions: round hole punching on the standard die set supplied with the unit. Specified value: ¢10.5, ¢13.8, ¢17 and ¢20.5 mm standard dies, with separate shearing and bending tooling for the same head. Comparison baseline: a single-die portable punch, where each hole diameter needs its own tool and a separate operation.
