For Saudi electrical panel-board production that needs embossing in the same cycle as punching and shearing, the LTMC HQ600-S-7P is the build we recommend, because it is the only 600 kN configuration that carries a dedicated embossing station alongside seven punching dies and one shearing die in a single straight-column row. It accepts busbar up to 6000 × 200 × 15 mm with a ф4.3–ф55 mm punching range, and the Swiss ABB hydraulic station delivers a consistent 600 kN to the punching and shearing units so performance holds through continuous heavy-duty cycles. Positioning accuracy is 0.10 mm per 500 mm on six axes with 75 m/min X-axis speed. It suits panel boards, switchgear and transformer work in Riyadh, Jeddah and Dammam. Confirm the die bank and configuration against your purchase specification.
HQ600-S-7P CNC Busbar Punching and Shearing Machine for Saudi Industrial Switchgear

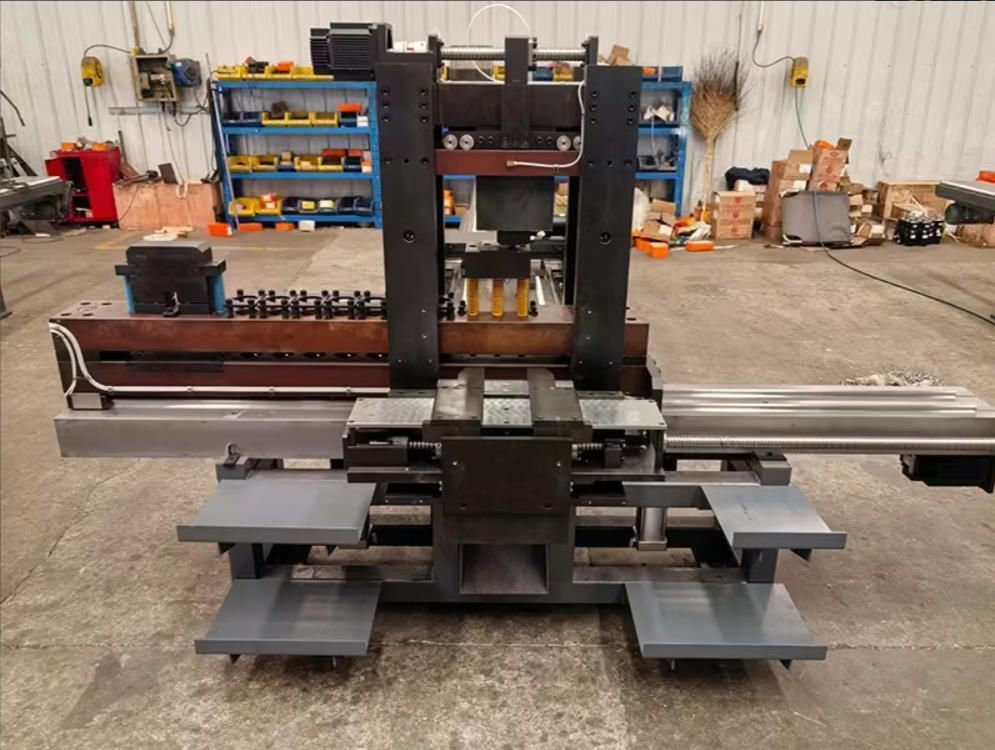

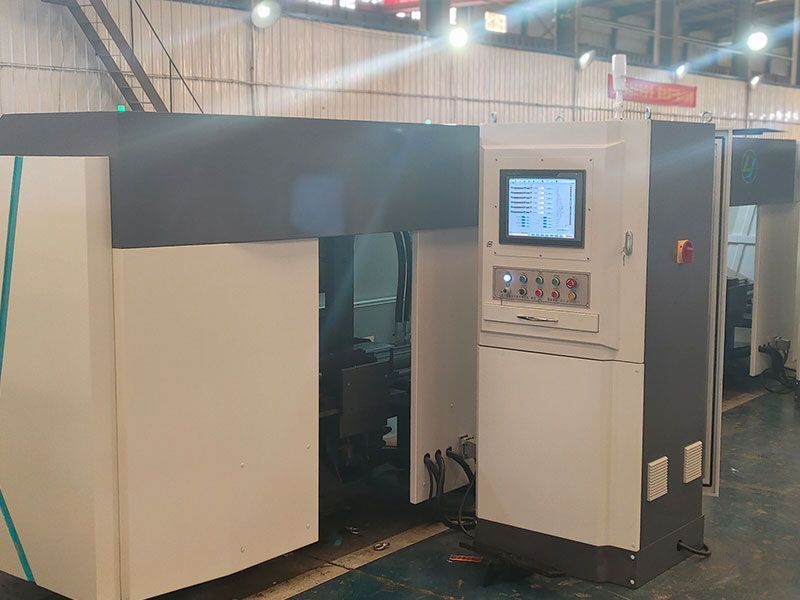

The LTMC HQ600-S-7P CNC busbar punching and shearing machine is a high-performance industrial busbar processing solution engineered for the demanding requirements of Saudi Arabia’s electrical infrastructure and power distribution projects. This machine integrates advanced punching, shearing, and embossing capabilities. The HQ600-S-7P adopts a robust straight-column mold frame featuring 7 punching stations, 1 shearing station, and 1 embossing station to ensure superior concentricity of the upper and lower dies during heavy-duty processing. Equipped with a precise CNC control system and advanced CAD/CAM software, it significantly optimizes production efficiency for Saudi copper busbar punching and fabrication. Contact us for the latest project quotations and technical support in Riyadh and across the Kingdom.
LT Saudi Busbar Machine Operation Videos:

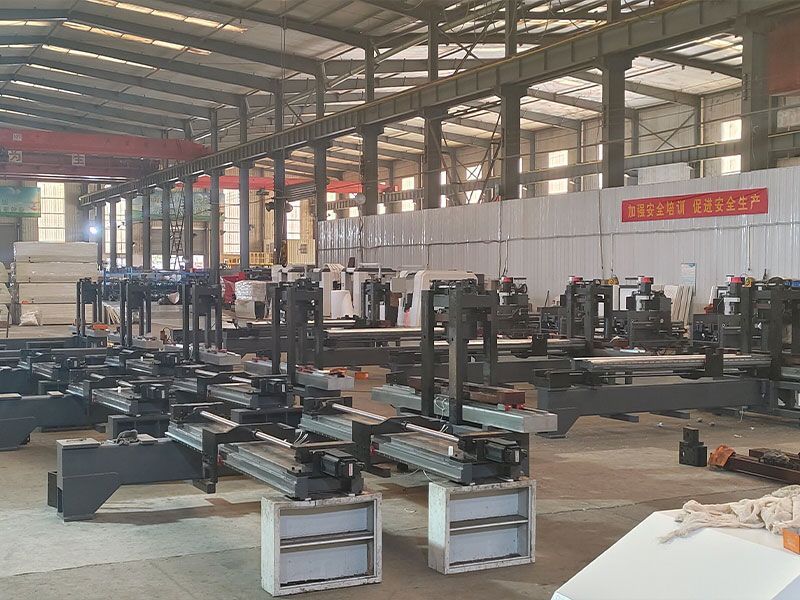

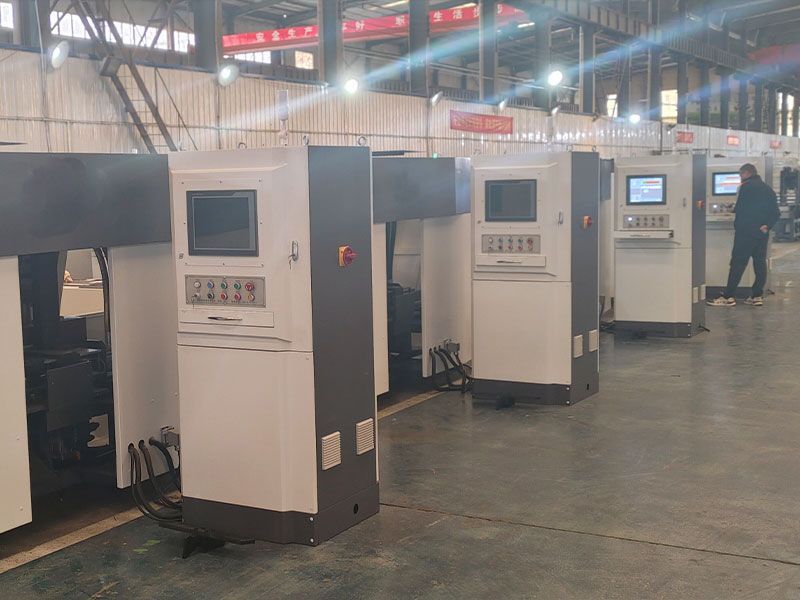

Equipment Overview & Factory Details:
HQ600-S-7P CNC Copper Busbar Punching Machine Specifications
| Model | HQ600-S-7P |
| Maximum Force | 600KN |
| Feeding Station Size | 3000x500mm |
| Discharge Station Size | 2500x500mm |
| Maximum Plate Size | 6000x200x15mm |
| Maximum Processing Thickness | 15mm |
| Maximum Processing Width | 200mm |
| Maximum Punching Diameter | Ø4.3-Ø55mm |
| Maximum Number of Cutting Dies | 1 |
| Maximum Number of Punching Dies | 7 |
| Maximum Number of Embossing Mold | 1 |
| X-Axis Maximum Travel | 2000mm |
| X-Axis Accuracy Error | 0.10/500mm |
| Y-Axis Maximum Travel | 960mm |
| Y-Axis Accuracy Error | 0.10/500mm |
| Z-Axis Maximum Travel | 310mm |
| X-Axis Maximum Positioning Speed | 75m/min |
| Striking Cylinder Stroke | 45mm |
| Number of Control Axes | 6 |
| Dimensions (LxWxH) | 10500x2750x1800mm |
| Weight | 6700kg |

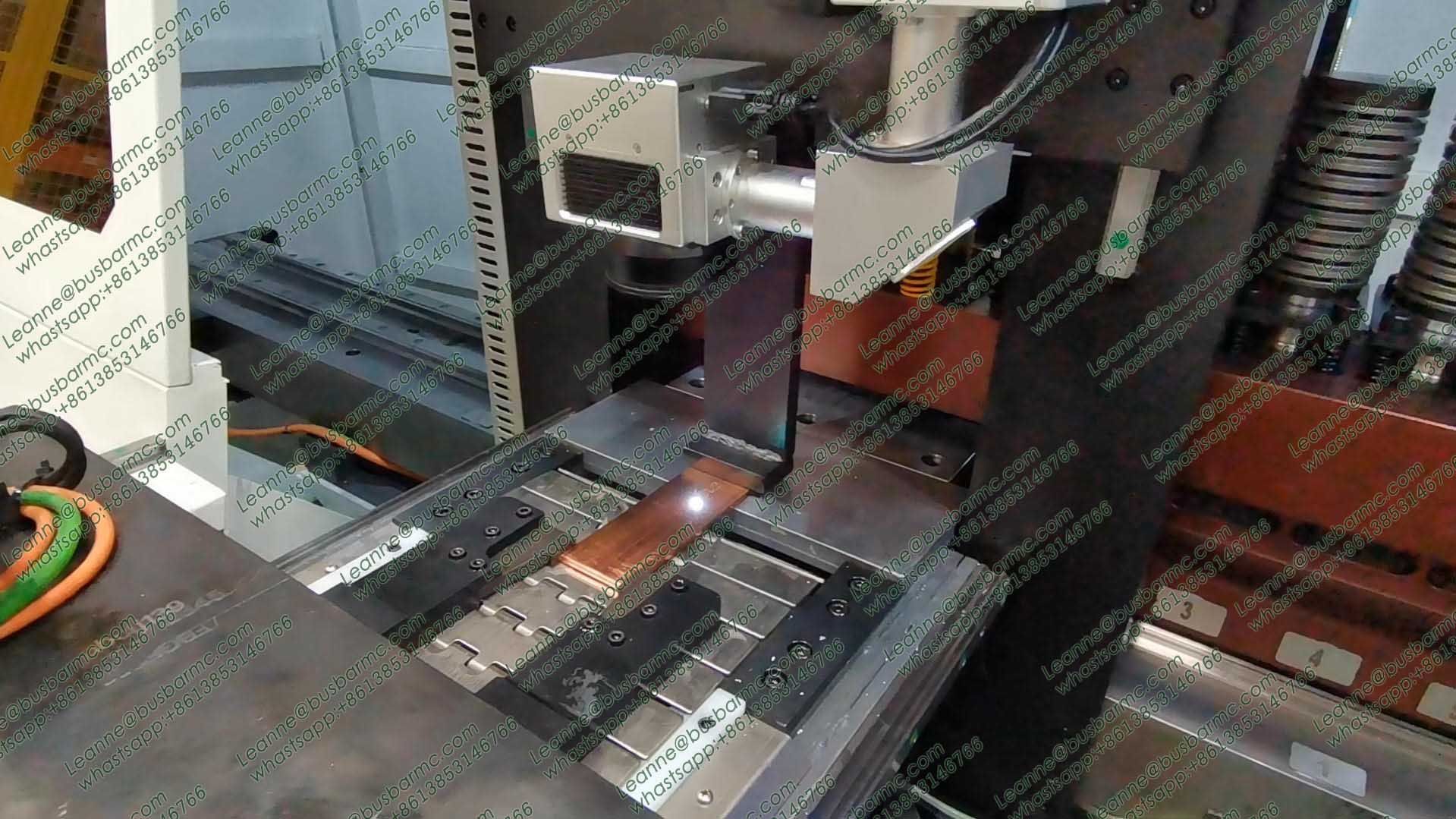

Advanced Features for Saudi Industrial Requirements:

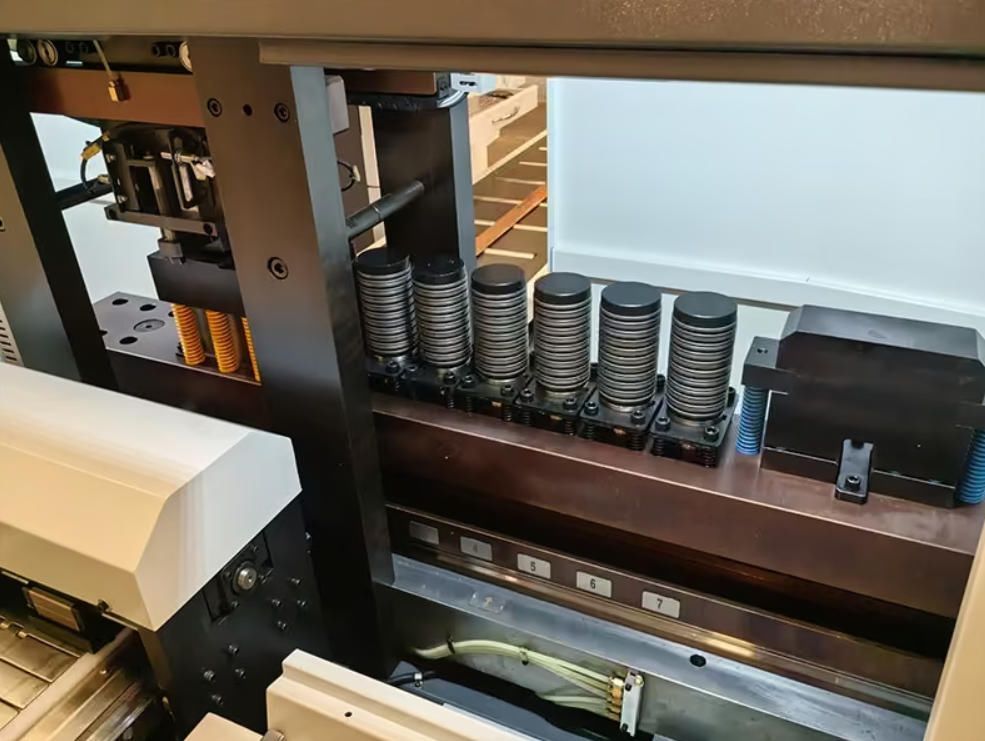

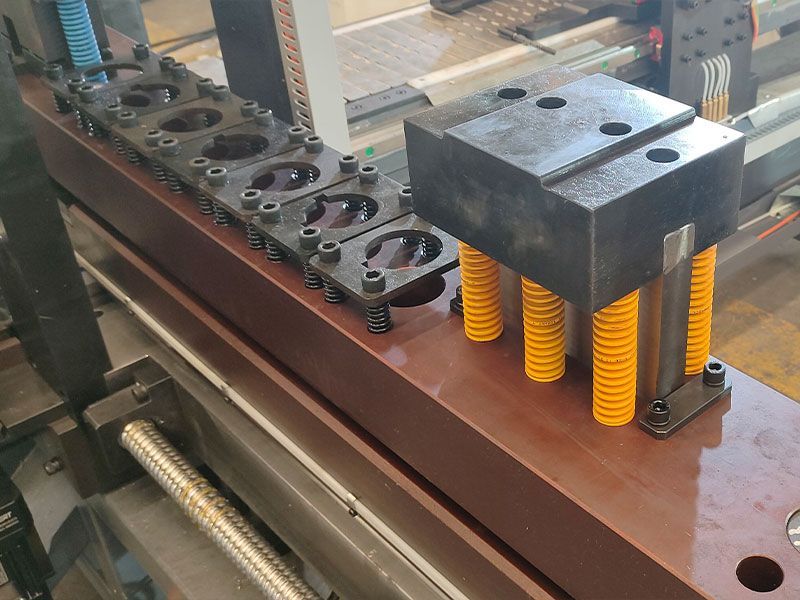

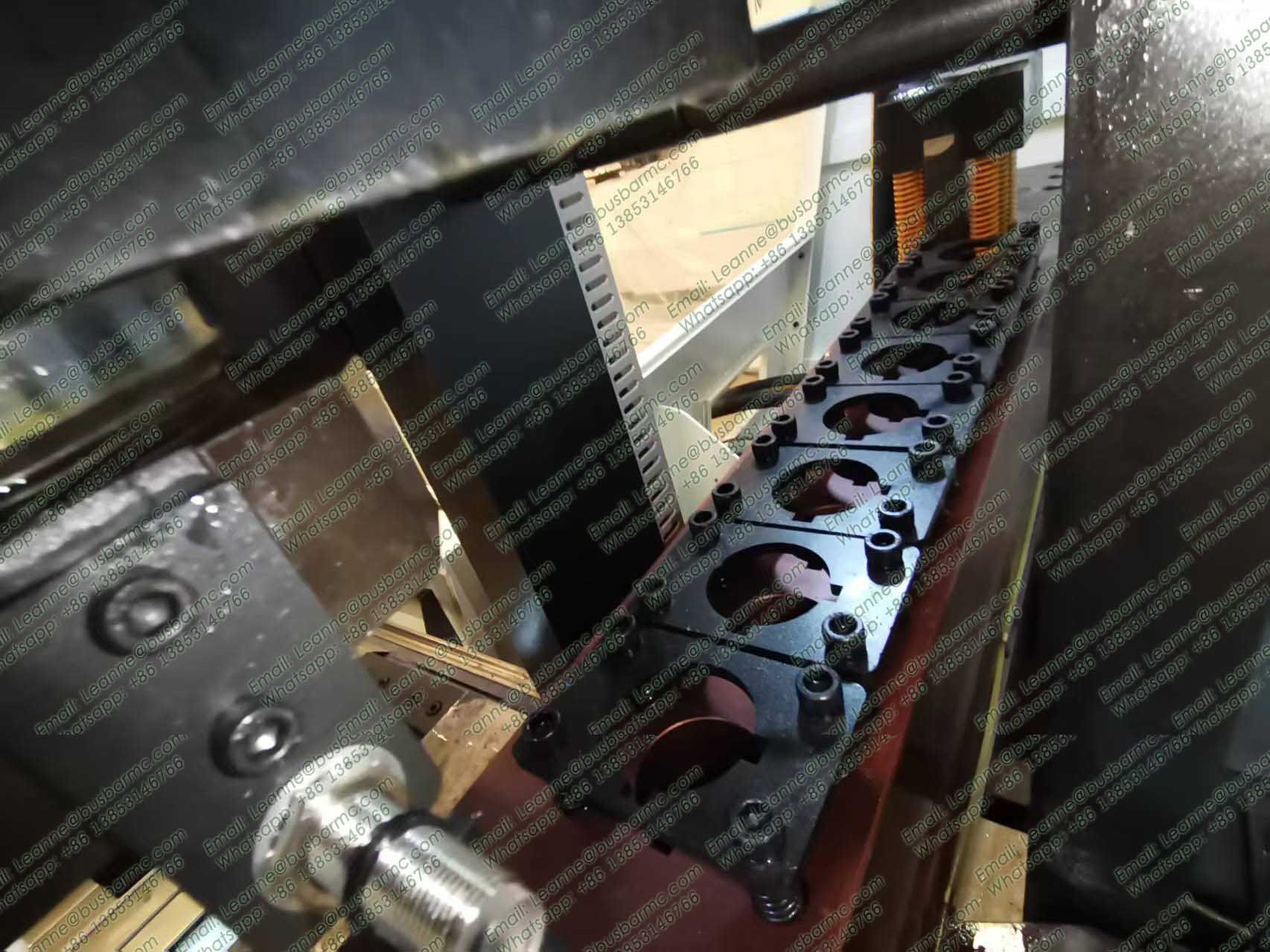

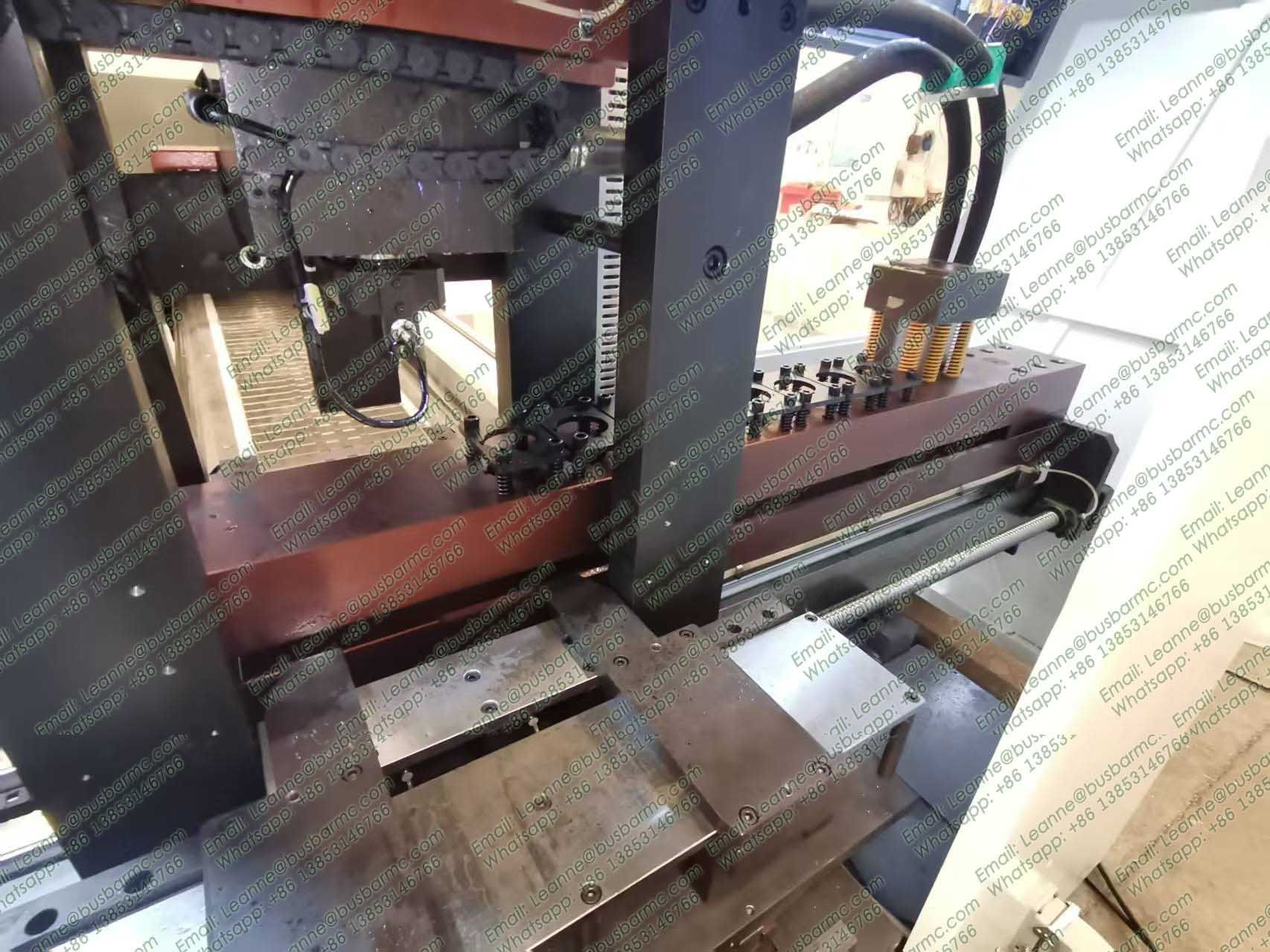

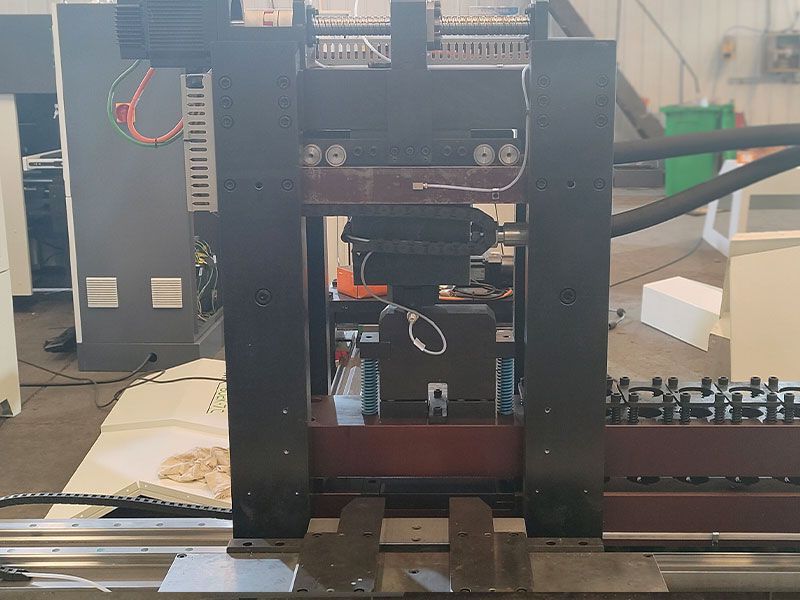

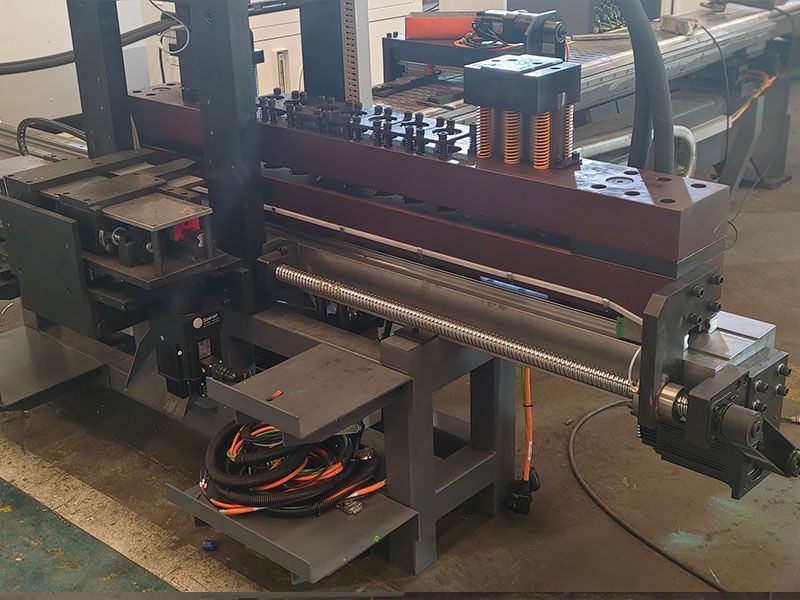

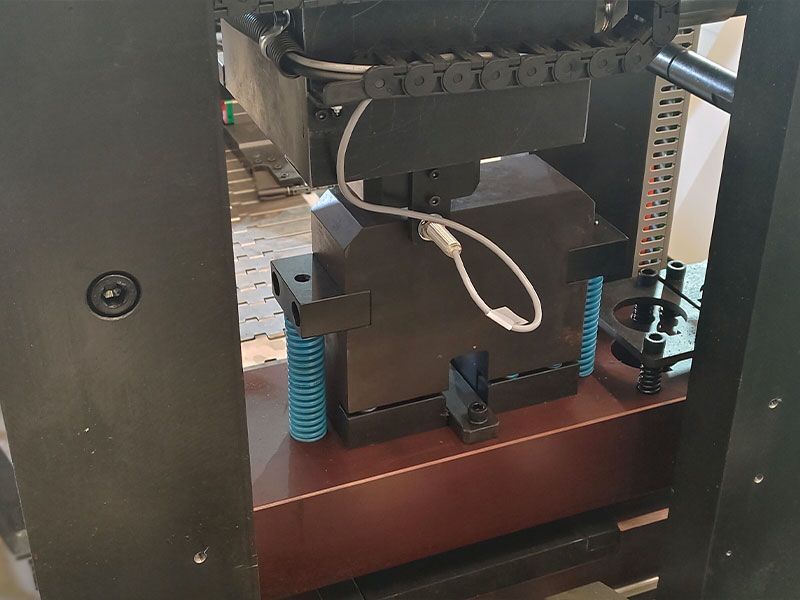

Straight column single row die library, consisting of 7 punching molds + 1 shearing mold + 1 embossing mold.
This machine utilizes a specialized single-row die library design, integrating 7 punching molds, 1 shearing mold, and 1 embossing mold in one sequence. This configuration ensures perfect concentricity and structural integrity for high-volume electrical panel production. While maintaining a high-efficiency processing speed of 40m/min, the system guarantees a high-precision tolerance of 0.1mm/500mm, essential for KSA engineering standards.
High-Speed 6-Axis Servo System for Optimized Fabrication:

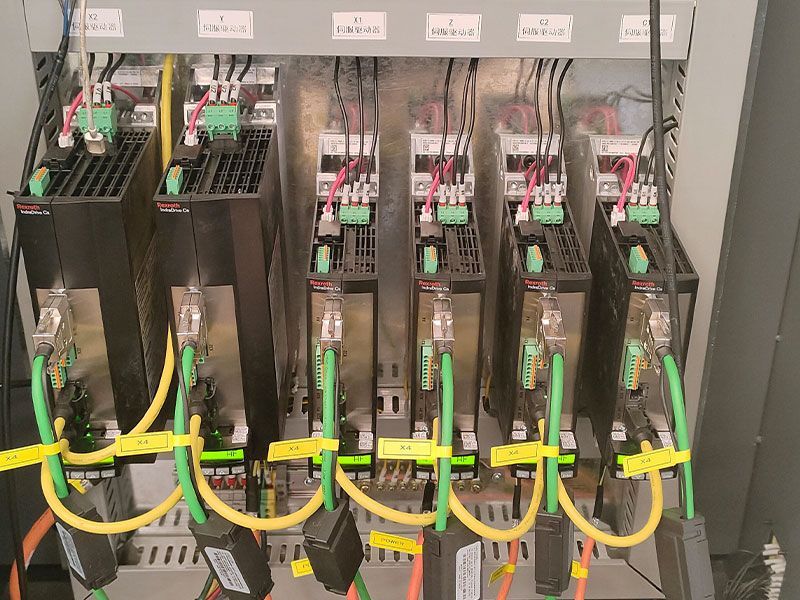

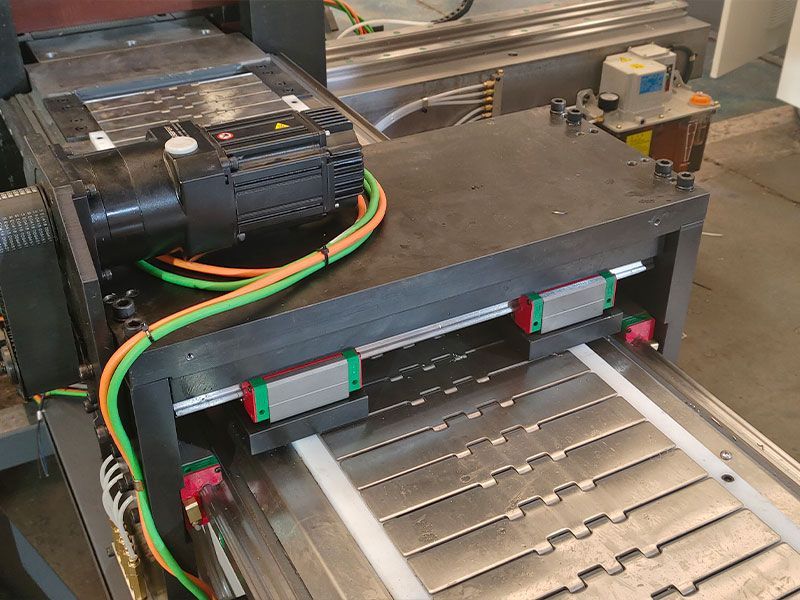

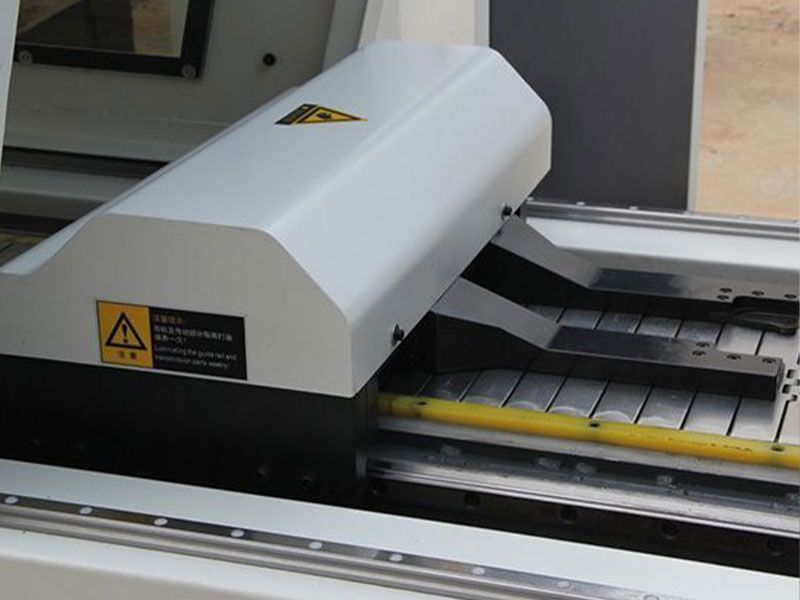

The advanced 6-axis motion control system leverages 6 premium servo servers and motors to drive operation with extreme accuracy. The X1 servo clamp offers a flexible 110mm stroke, while the X2 servo clamp provides a 2000mm stroke, minimizing feed waste. It achieves a maximum positioning speed of 75m/min (up to 150m/min under no-load conditions), significantly enhancing the throughput of Saudi electrical manufacturing workshops.

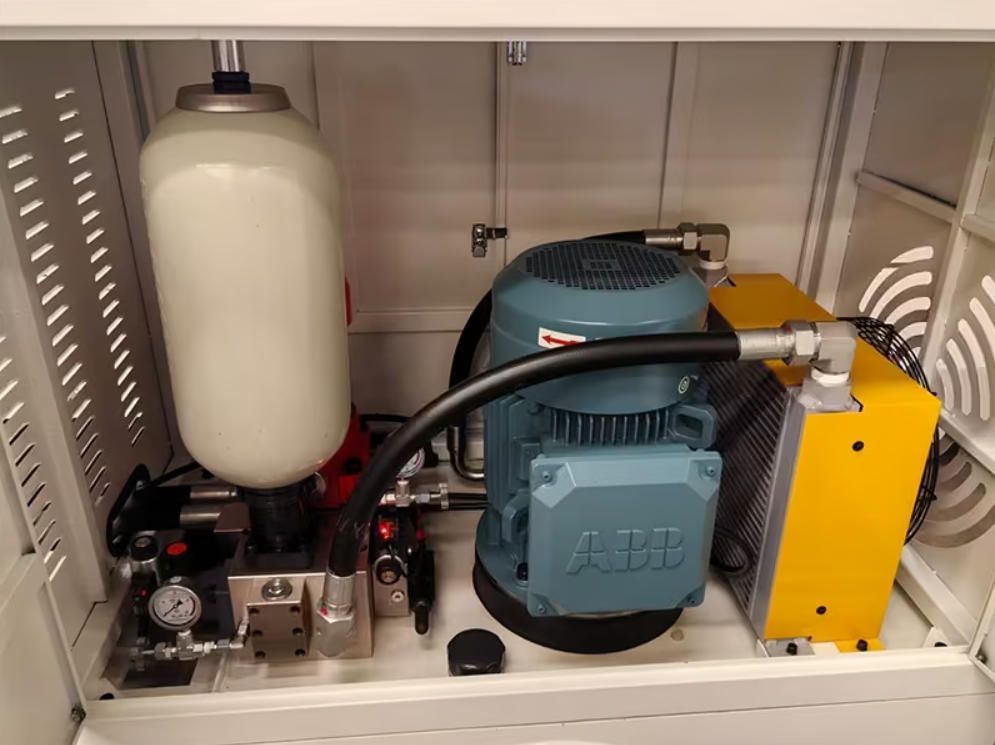

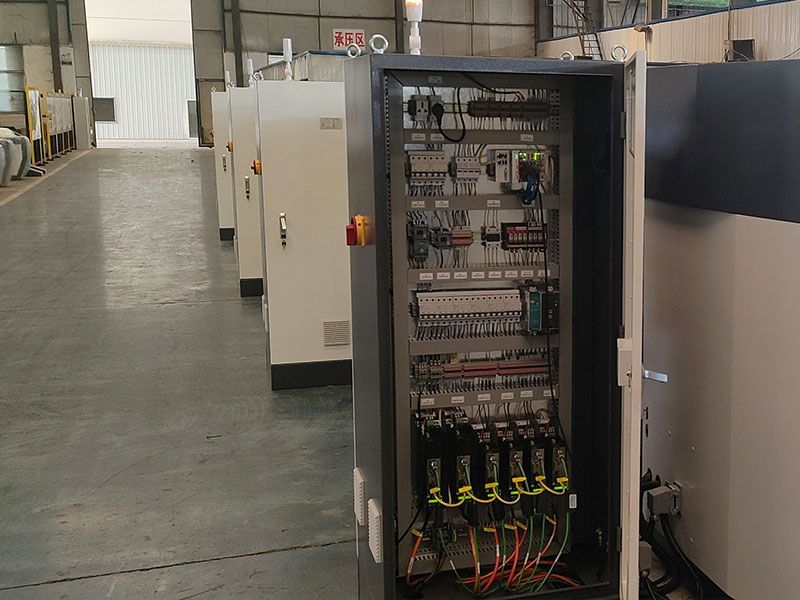

Swiss ABB Powered Hydraulic Stability:
Equipped with a high-durability Swiss ABB motor, the hydraulic station delivers a consistent 600KN of pressure. This dedicated power supply to the punching and shearing units ensures long-term operational stability even under continuous, heavy-duty cycles in desert climate industrial environments.
German Beckhoff & Rexroth Precision:

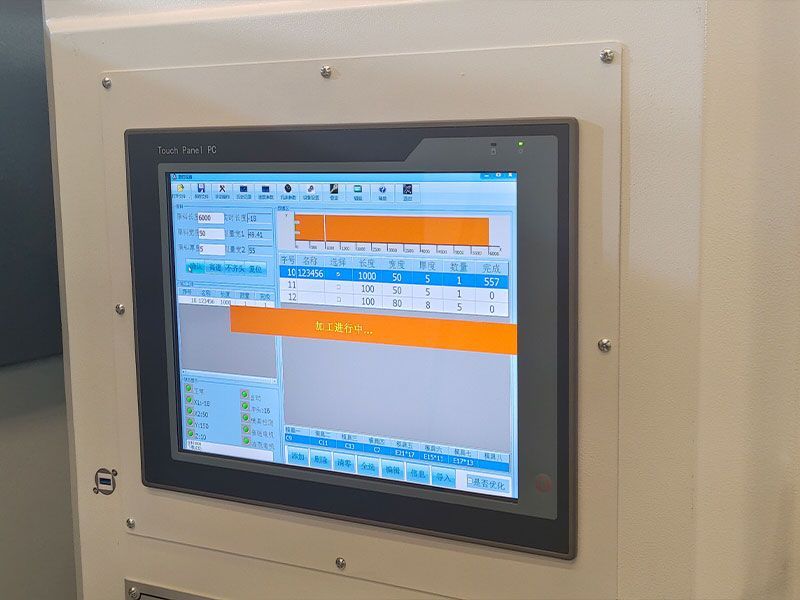

The machine integrates a German Beckhoff CNC system, utilizing closed-loop control for superior accuracy, robust anti-interference, and seamless self-adaptation—outperforming open-loop systems prone to data instability. By utilizing German Rexroth components, the machine provides reliable long-term performance with reduced maintenance costs, making it the preferred choice for major KSA infrastructure projects.
FAQ – HQ600-S-7P CNC Busbar Punching & Shearing System
Q1: Is the HQ600-S-7P suitable for Saudi power infrastructure?
Yes, this machine is specifically engineered for high-performance copper and aluminum processing required in Saudi switchgear, power distribution panels, and large-scale electrical sub-station projects.
Q2: What is the maximum processing capacity?
It handles busbars up to 6000 × 200 × 15 mm, providing versatility for various heavy-duty electrical requirements.
Q3: Does the machine include embossing capabilities?
Yes, it features a 1-station dedicated embossing mold alongside 7 punching and 1 shearing mold, all in a single straight-column bank.
Q4: Why is the German Beckhoff control system preferred in Saudi industrial plants?
Its closed-loop control offers high-precision stability and stronger anti-interference capabilities compared to standard open-loop controllers, ensuring consistent quality for critical electrical components.
Q5: What are the maintenance requirements for the hydraulic system?
Regular checks of the ABB motor and hydraulic oil pressure are recommended to ensure optimal performance under sustained high-load operations.
Q6: Does this machine support software integration?
Absolutely, the CNC system is compatible with CAD/CAM software, allowing for direct DXF drawing imports and fully automated programming workflows.
Q7: How to order for delivery to Riyadh or Jeddah?
We provide comprehensive logistics and technical support for all Saudi regions. Contact our local sales representatives for localized lead times and installation training support.
