Copper bar Aluminum bar Bend, U-bend , Stand up,CNC Busbar Bending Copper CNC Busbar Bending

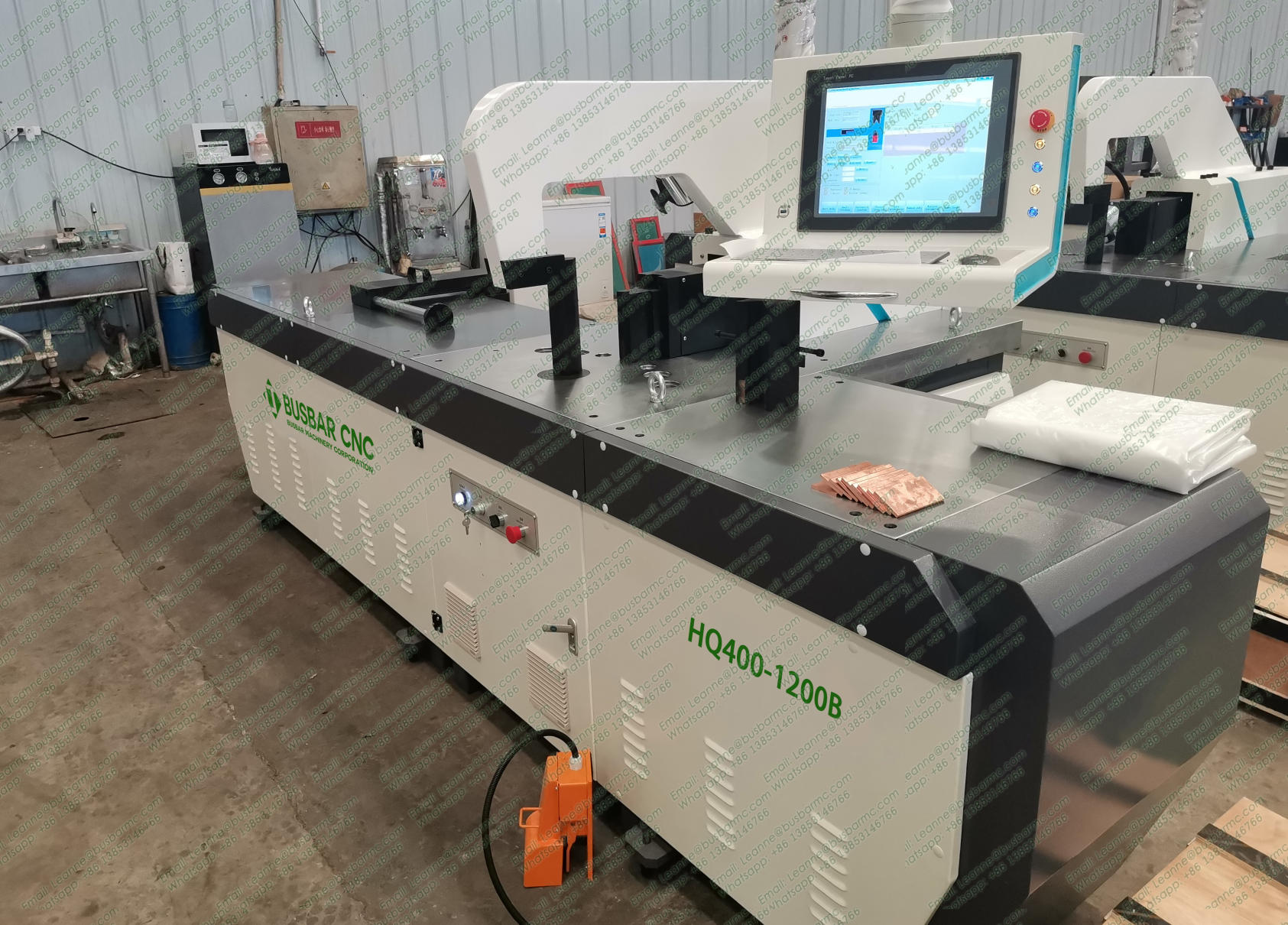

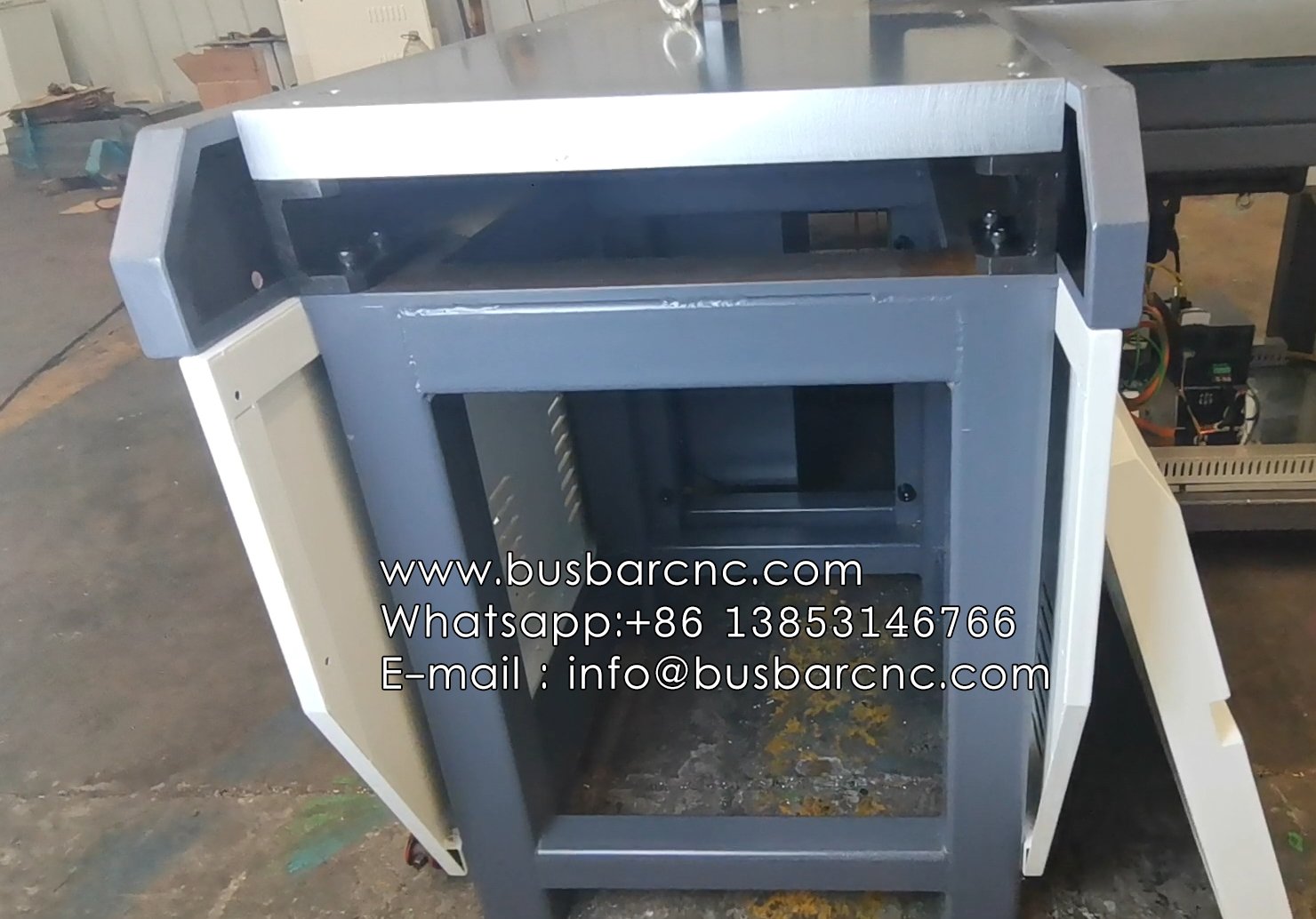

The HQ400-1200B is the LTMC CNC busbar bending machine to specify where busbar runs in a Saudi or GCC panel shop are limited to about 1200 mm, because it delivers servo bending at 400 kN with a 1200 mm gauge length, ±0.15 mm gauge accuracy and ±0.3° bending accuracy on 15 × 160 mm horizontal and 12 × 120 mm vertical sections. The Y-axis bending head moves at up to 5 m/min and the side striker at 15 m/min, with ±0.02 mm Y-axis repeat positioning accuracy, so repeated U-bends and stand-up bends hold position across a batch. Dies are quick to install and replace, and blocking accuracy is ±0.15 mm. It suits LV/MV panel boards, distribution cabinets and busduct fabrication where the bend envelope fits 1200 mm. Confirm the gauge length and tooling against your purchase specification.
Ideal solution for bending copper and aluminum busbars with high efficiency, automation, and precision

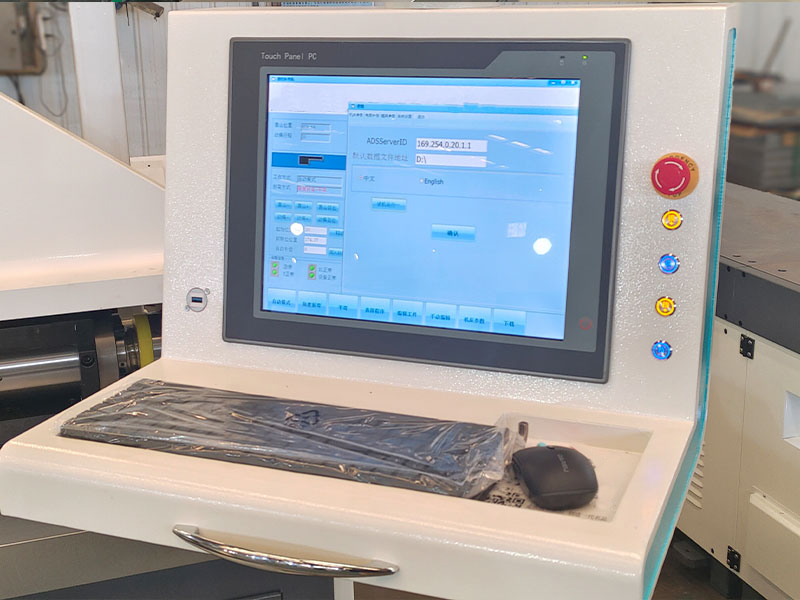

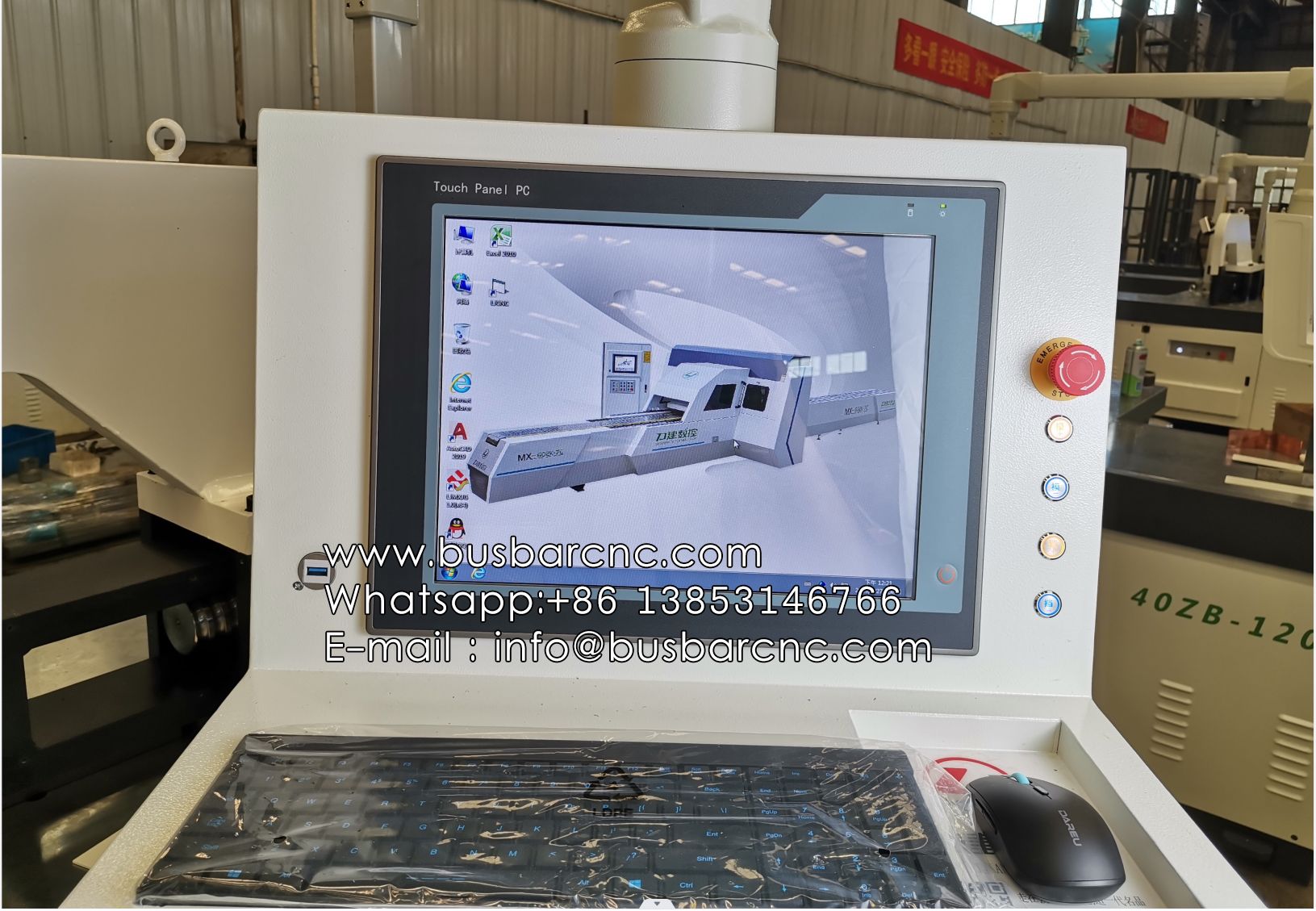

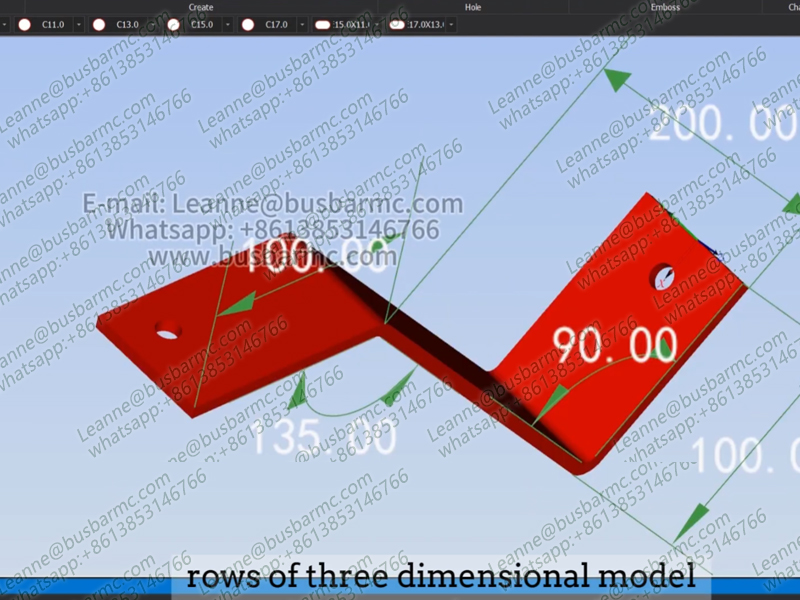

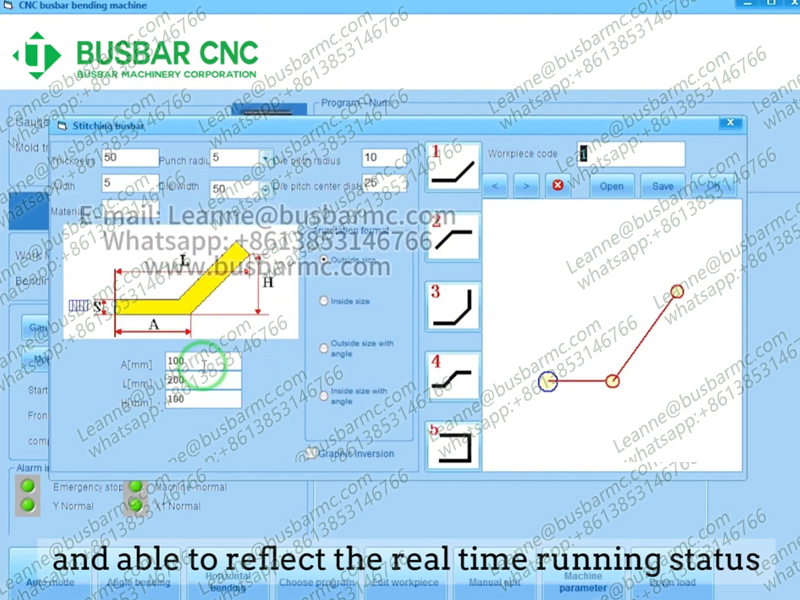

SASO certified CNC control system with self-developed CAD/CAM software

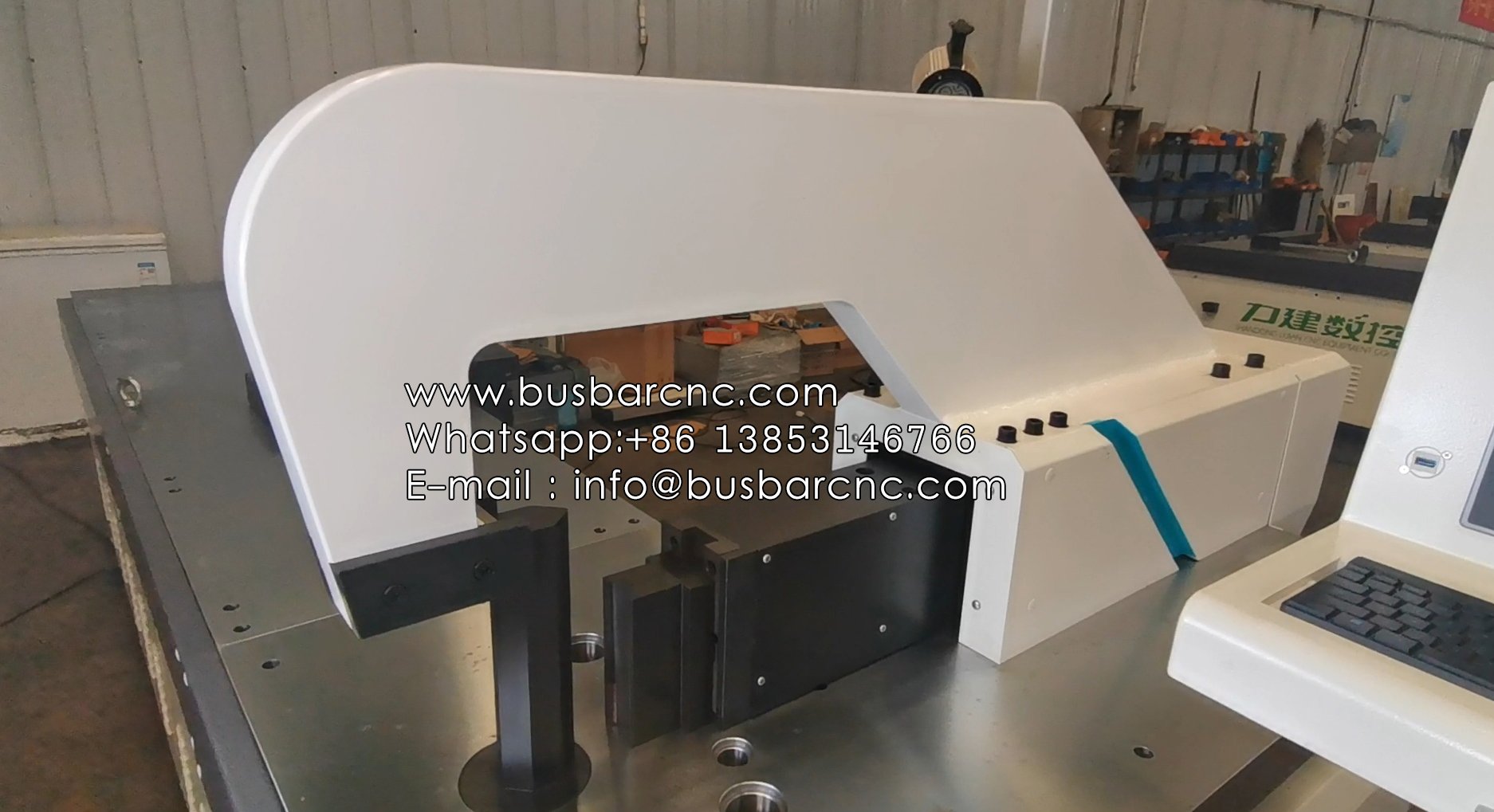

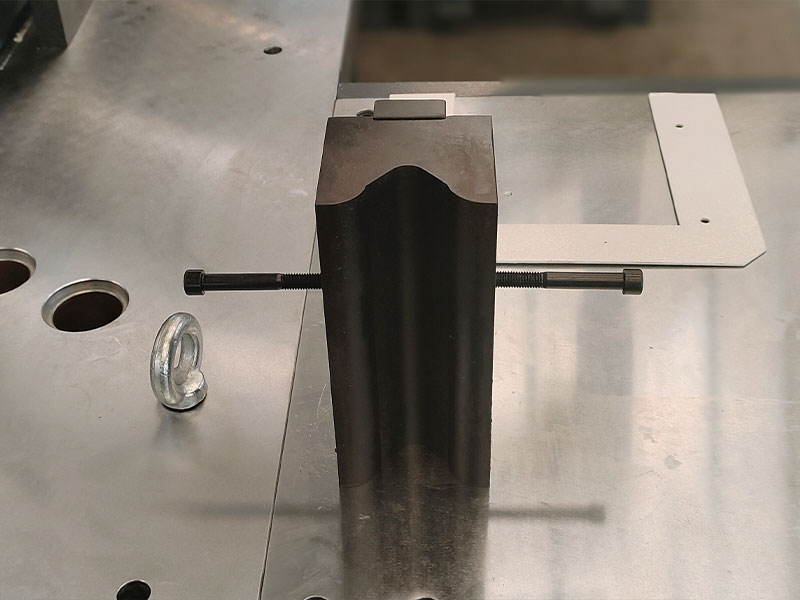

Patented "closed bending" technology for superior mechanical strength and precision
High-inertia servo motors ensure stable operation in Saudi climate conditions
Fully compliant with Saudi voltage standards (13.8kV - 69kV)

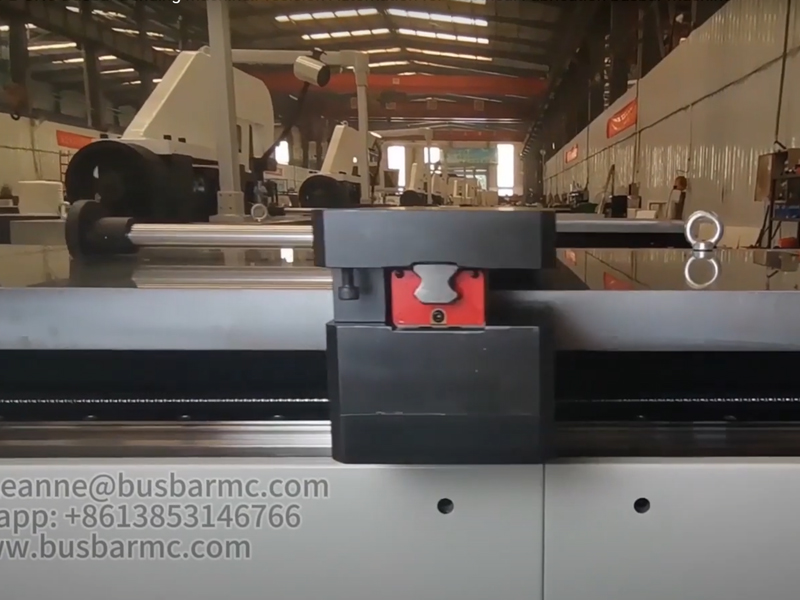

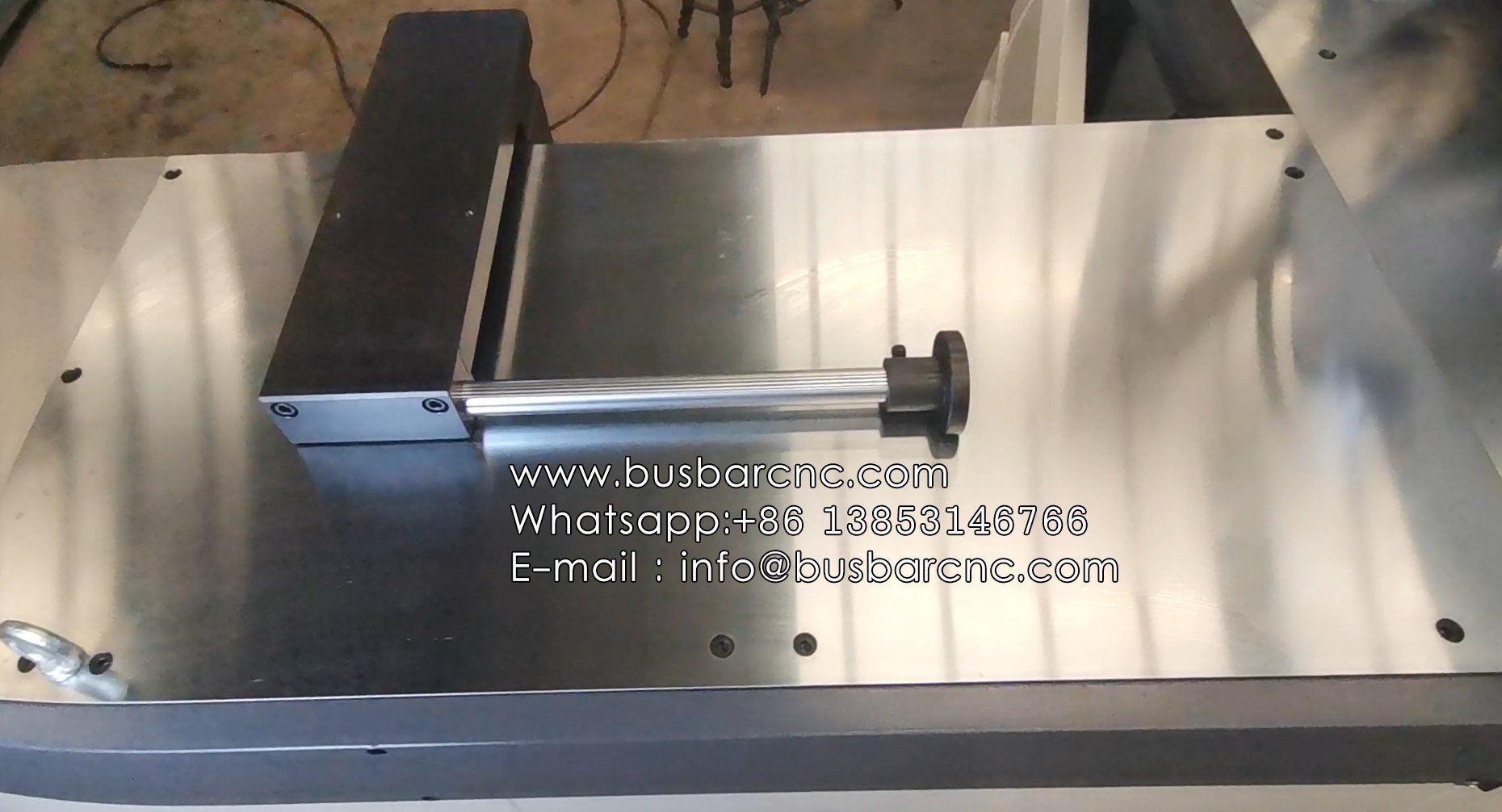

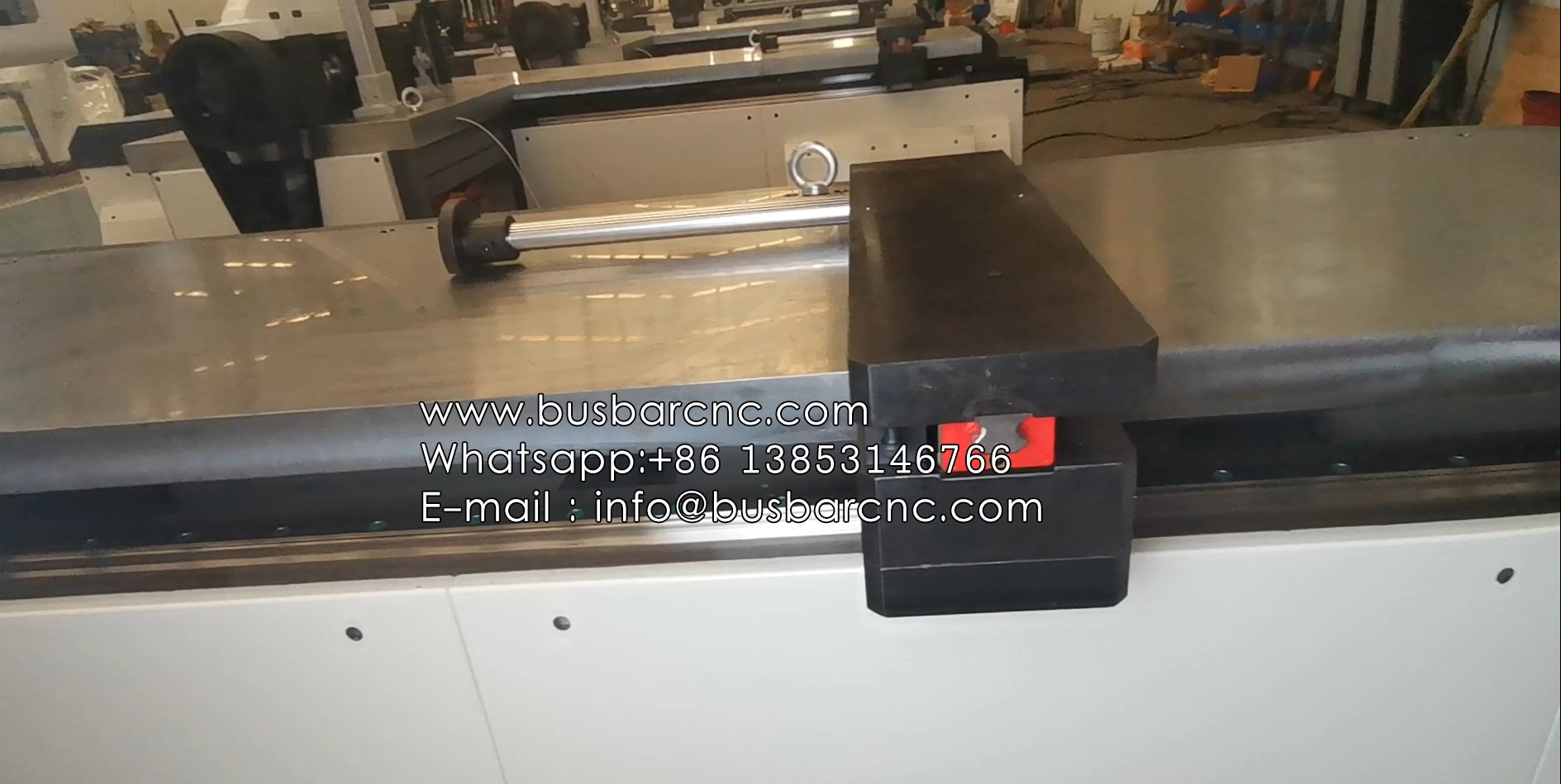

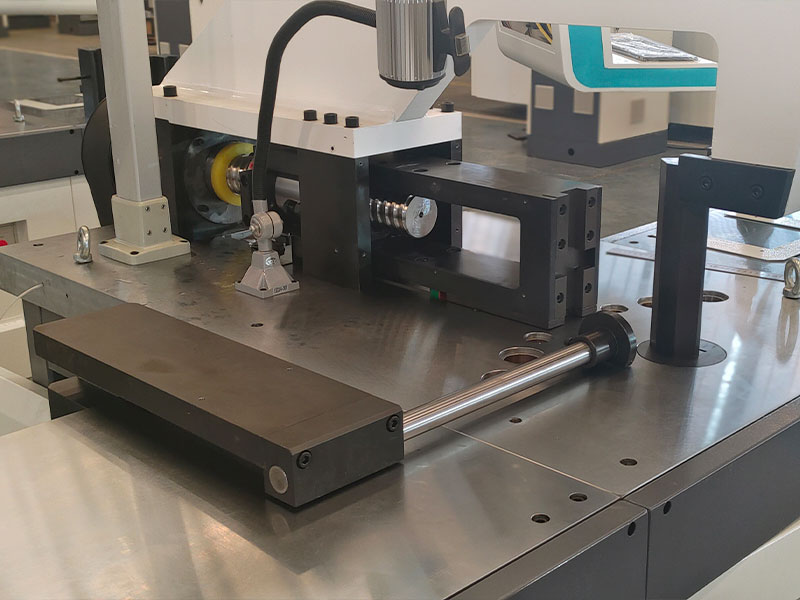

Linear guide rail system for balanced force distribution
Seamless integration with CNC busbar punching machines
Low maintenance requirements and operational costs

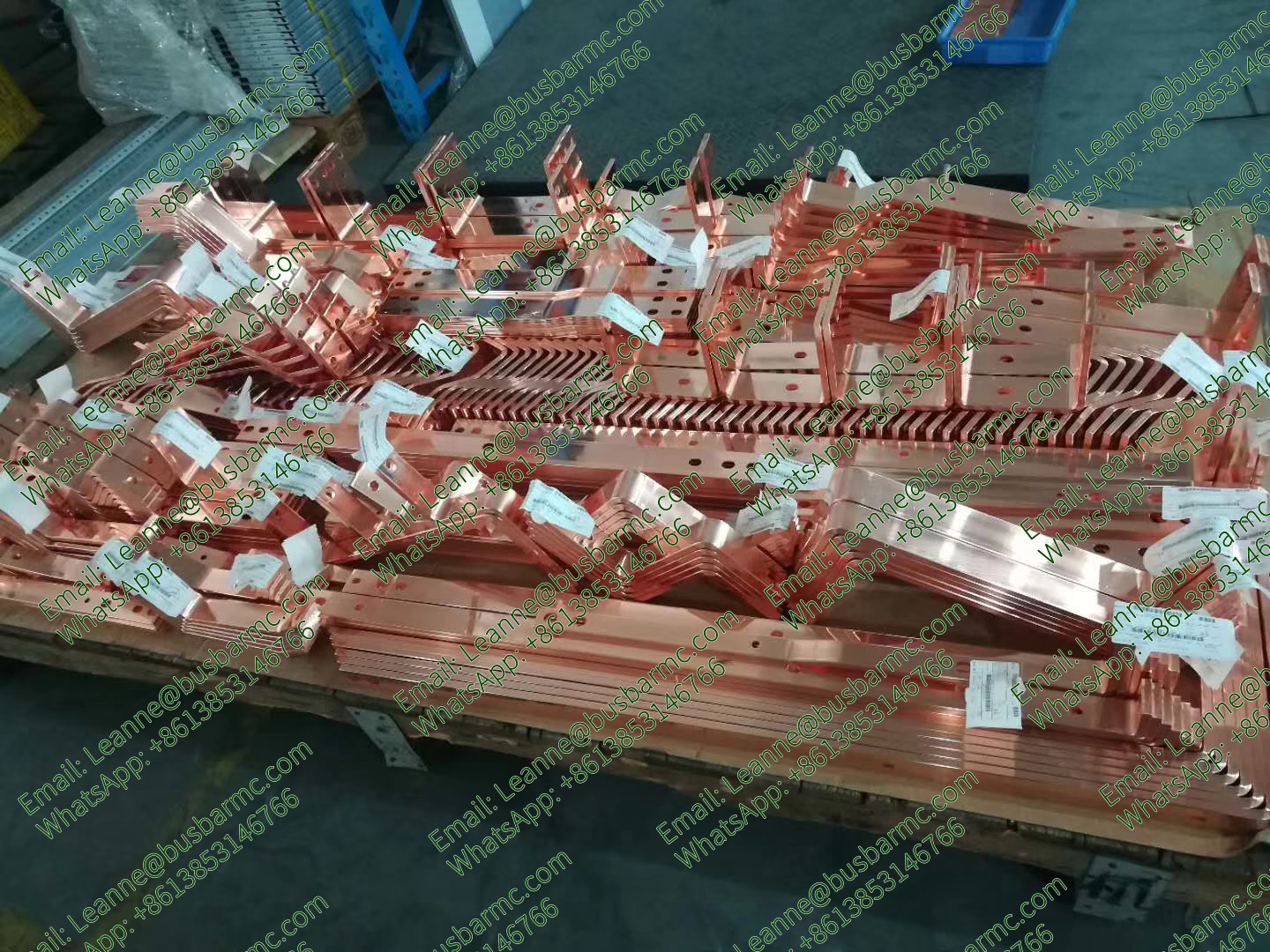

Electrical substations and power distribution systems
High and low voltage switchgear
Power transformers
Bus duct systems
Renewable energy projects
Heavy electrical industries
With local technical support in Riyadh and Jeddah, LTMC® provides complete busbar processing solutions that meet Saudi Electricity Company specifications, offering superior after-sales service and maintenance support.
| Model | HQ400-1200B | HQ400-2000B |
|---|---|---|
| Nominal Pressure | 400KN | 400KN |
| Gauge Length | 1200mm | 2000mm |
| Flat Bend Max Size | 15x160mm | 15x200mm |
| Vertical Bend Max Size | 12x120mm | 12x120mm |
| Parameter Comparison | ||
| Spindle Travel | 200mm | 200mm |
| Main Motor Power | 7.5kw | 7.5kw |
| Gauge Accuracy | ±0.15 | ±0.15 |
| Bending Accuracy | ±0.3 | ±0.3 |
| Machine Dimensions | 3500x1450x1850mm | 4300x1450x1850mm |
| Machine Weight | 3100kg | 3300kg |

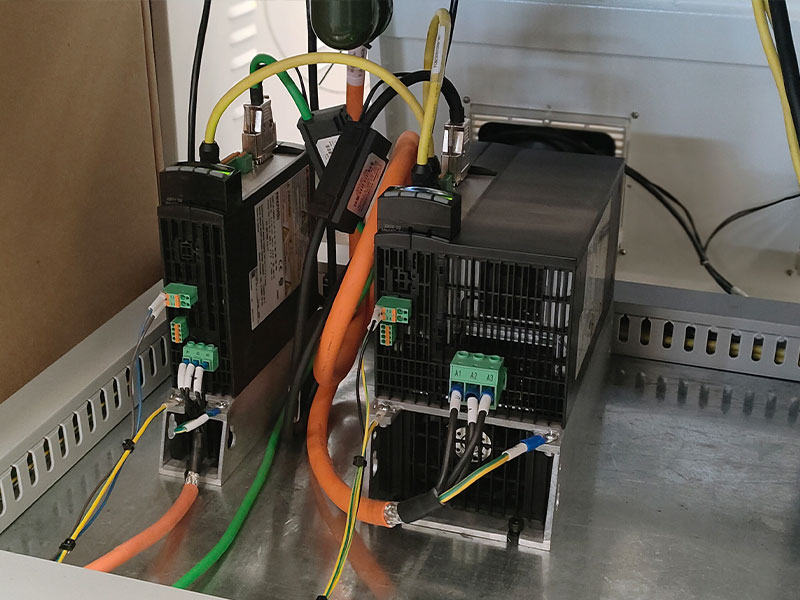

Servo spindle motor: Rexroth
Ball Screw: TBI
Precision Planetary Gearbox: SEW-Eurodrive

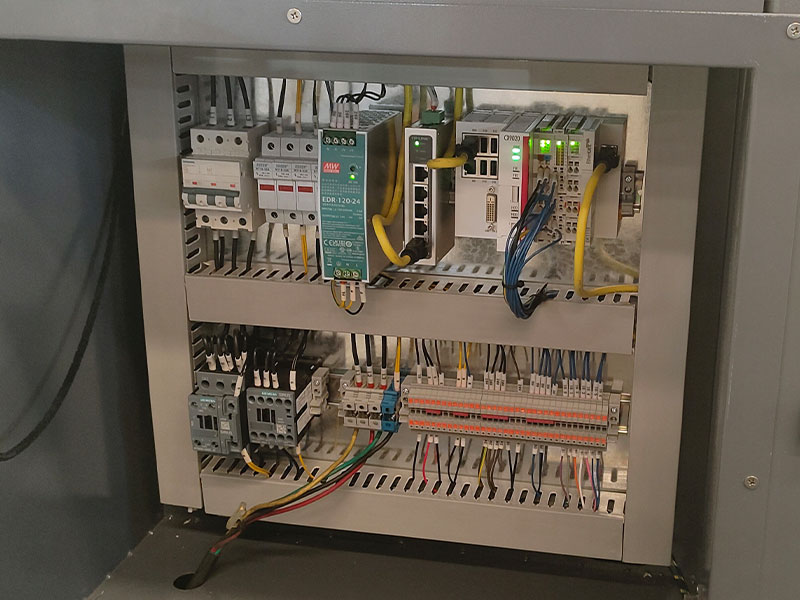

Programmable Controller: Beckhoff
Lead Screw: Nanjing
Computer: Beijing Qiyang
AC Contactor: Siemens
Linear Guideway: Hiwin
A set of random maintenance tools
A pack of spare seals
A foot switch

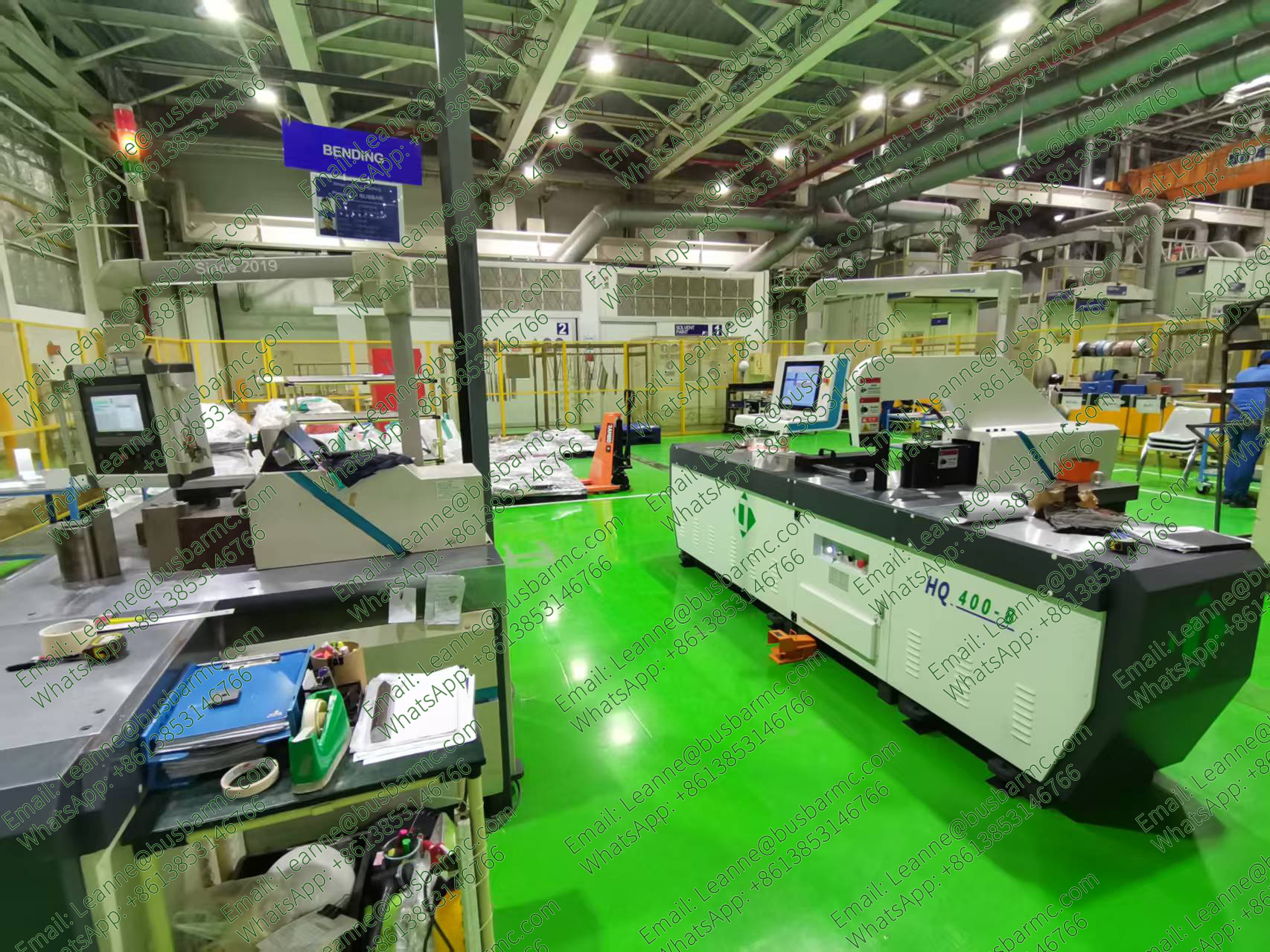

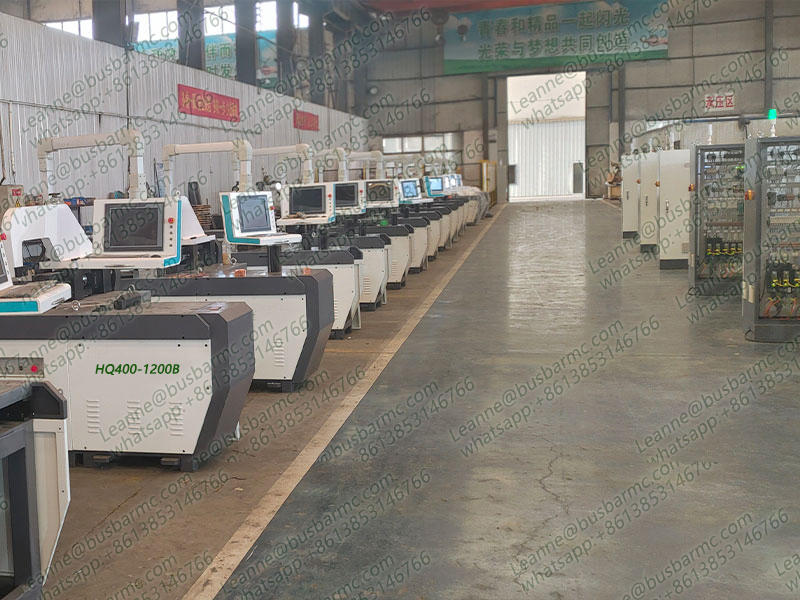

We provide complete busbar processing solutions with full quality assurance and excellent after-sales service, backed by extensive experience in the Saudi and Gulf markets.
Video:
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: repeated horizontal bends on 15 × 160 mm copper busbar using the servo bending head. Specified value: ±0.3° bending accuracy with a ±0.15 mm gauge (blocking) accuracy. Comparison baseline: the LTMC 303U-3-C 3-in-1 bending unit, published at ±1° bending accuracy — the servo HQ400-1200B specification is about 70% tighter on angle.
Test conditions: repeated Y-axis positioning of the bending head on successive identical parts. Specified value: ±0.02 mm Y-axis repeat positioning accuracy with a 250 mm hydraulic cylinder stroke. Comparison baseline: mechanical stop setting on a manual press brake, where repeat position typically varies by 0.1 mm or more between parts.
Test conditions: positioning the bending head and side striker between bends. Specified value: bending head (Y axis) up to 5 m/min with a 1.25 m/min low range, side striker (X axis) up to 15 m/min. Comparison baseline: manual hand-wheel positioning on a press brake, where travel speed is set by the operator.
Test conditions: forming vertical bends at the top of the rated section. Specified value: 12 × 120 mm maximum vertical bend size alongside a 15 × 160 mm maximum horizontal bend size at 400 kN. Comparison baseline: the LTMC 303U-3-C class, limited to a 10 × 100 mm vertical bend — the HQ400-1200B vertical capacity is about 44% larger on size.
