JPMX-301AProduct InformationProduct name: Combined busbar processing machine JP
The LTMC-30A combined busbar processing machine is the LTMC pick for copper busbar work where the machine has to move to the job, because punching, cutting and bending are combined in one portable 630 kN head running on an ordinary 220 V / 50 Hz supply. Maximum processing width is 150 mm and maximum processing thickness is 10 mm on the 30A head, with standard dies at ¢10.5, ¢13.8, ¢17 and ¢20.5 mm and a machine weight of 170 kg. That combination suits construction and transmission sites, distribution work, and electrical manufacturing plants building distribution cabinets and switch cabinets, where a fixed workshop machine cannot reach the work face. Because it is portable, output depends on operator handling rather than on servo positioning. Confirm the head size and die set against the busbar sections on your purchase specification.
LJMC-30A
Product Information

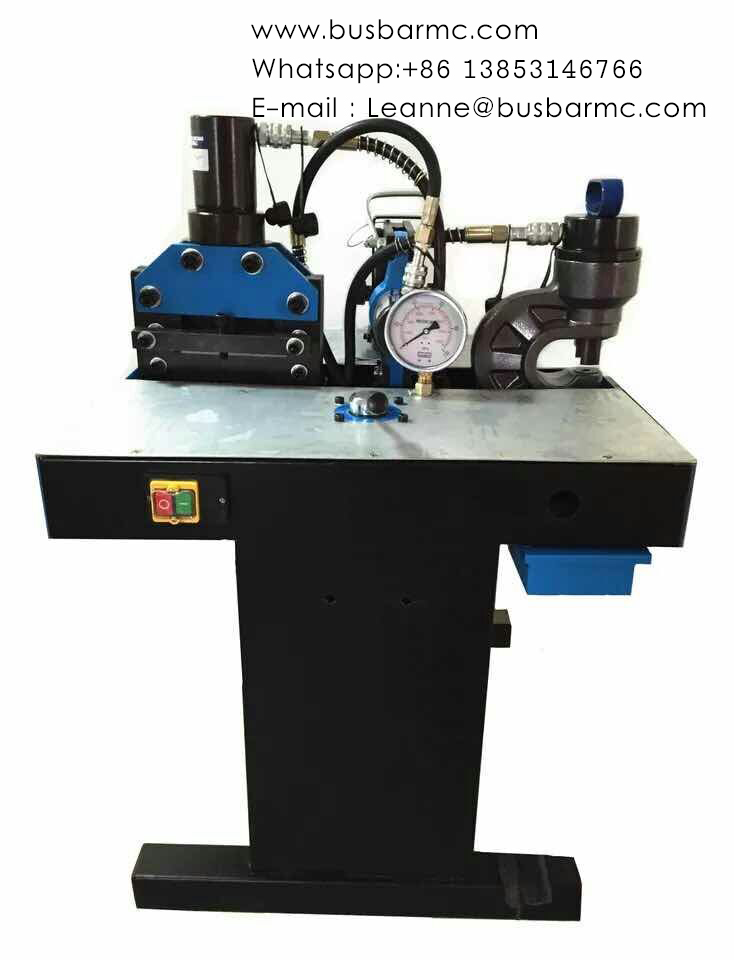

Product name: Combined busbar processing machine LJMC-30A for copper
Main features: 1. It can be used at any occasion.
2. Small volume and easy to move.
3. High production capacity and high work efficiency.
Product application: Power distribution boxes, transformer, switch canbinet.
Functions
LJMC-30A has three functions : punching , cutting , bending.
It is combined with three portable busbar processing machine.
Processing Samples
Our Factory
Business Partner
Our products sell well in Europe, North America, South America and Southeast Asia.
Our company is a partner of first-line brands such as ABB, Siemens and Schneider.
Techinical Parameters
| Item | Model |
| LJMC-30A | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 150 |
| Max. processing thickness (mm) | 10 |
| Out dimension (mm) | 690×700×1060 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 760×770×1320 |
| Machine weight (kg) | 170 |
| Item | Model |
| LJMC-30B | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 200 |
| Max. processing thickness (mm) | 12 |
| Out dimension (mm) | 900×700×1160 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 990×760×1320 |
| Machine weight (kg) | 205 |
Hot Tags: combined busbar processing machine LJMC-30A for copper, China, suppliers, manufacturers, factory, price
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: punching, cutting and bending operations on the same portable LTMC-30A head. Specified value: three functions combined at 630 kN rated oil pressure, 150 mm maximum width and 10 mm maximum thickness. Comparison baseline: separate portable punch, cutter and bender tools, which need three tools on site and three handling operations per busbar.
Test conditions: connecting the machine at a construction or distribution site. Specified value: 220 V / 50 Hz single-phase input, 170 kg machine weight. Comparison baseline: three-phase 3 × 4 kW workshop machines, which cannot be connected to a typical temporary site supply.
Test conditions: round hole punching using the dies supplied as standard. Specified value: ¢10.5, ¢13.8, ¢17 and ¢20.5 mm standard dies plus matched cutting and bending tooling. Comparison baseline: a single-die portable punch, where a new tool is required for every hole diameter.
