Turret Double Table Busbar Processing MachineProduct DescriptionThis series CNC
The CNC double-table busbar processing machine is the LTMC option for GCC workshops that need punching, shearing and bending to run at the same time, because the bending station sits on a separate deck so the three working stations operate together without interference. Punching uses a united eight-mode turnplate that keeps the upper and lower dies concentric and removes frequent die changes, while the shearing unit produces a flat, burr-free interface with no droop and no waste. The open-structure bending station makes finished parts easy to lift out, and four casters plus manual-button and foot-switch modes let one operator move and run the machine. It suits panel builders processing mixed busbar batches. Section capacity and tooling should be matched to your purchase specification before order release.

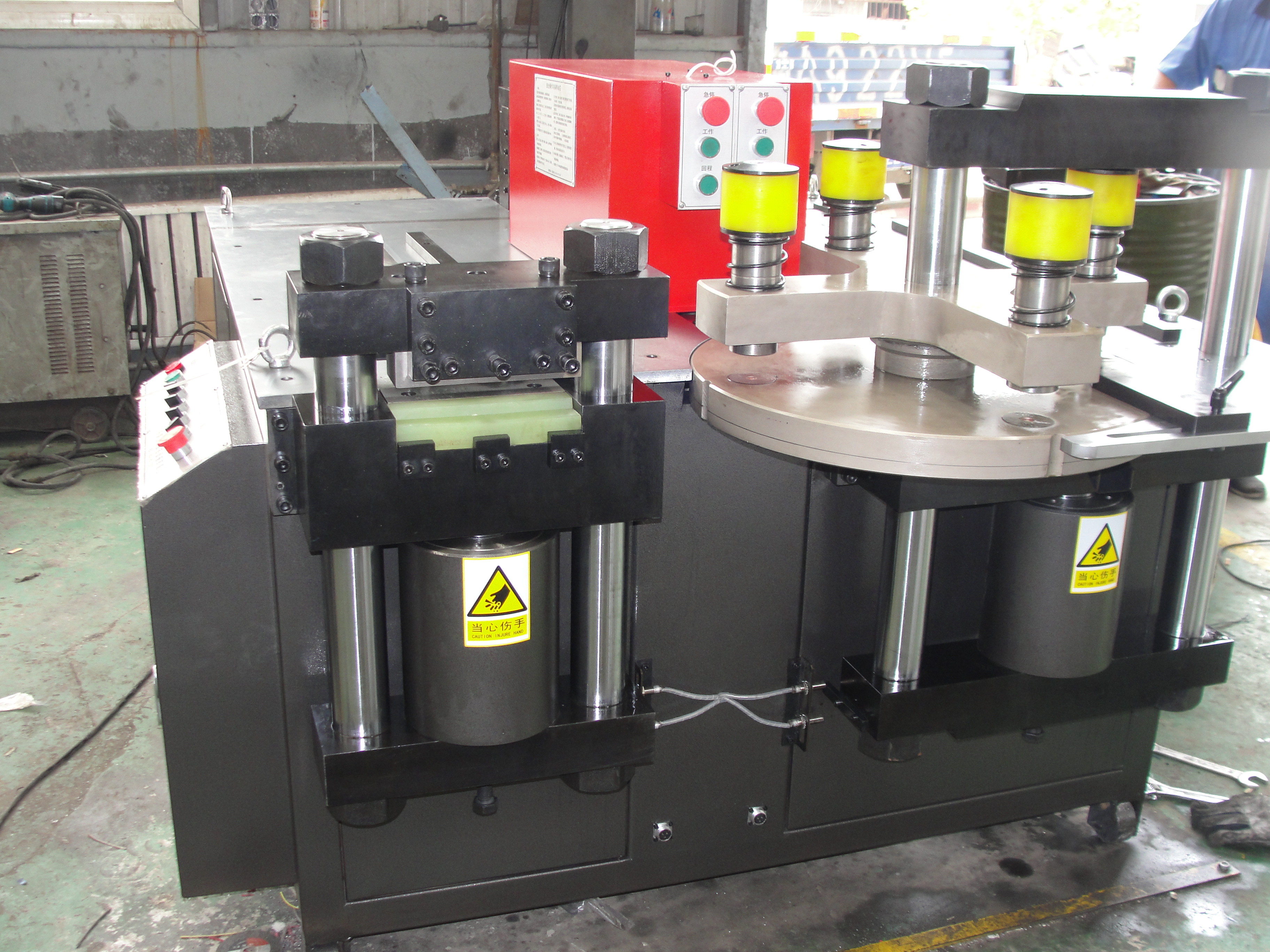

Turret Double Table Busbar Processing Machine
Product Description
This series CNC busbar processing machine has three units: punching, shearing, and bending. It is easy to adjust each unit to shorten the processing time and improve production efficiency. It is used to process copper and aluminum busbars in different specifications. By relative operation unit, it can easily and quickly do all kinds of processing to copper and aluminum busbars, such as shearing, punching (circular hole and oblong hole), flat/horizontal bending, vertical bending, and knurling. Change different molds to do special processing to copper busbars, such as flat press, emboss, cable connector process, cut, flat crush, push, and bend.
Main Characteristics
1. The shearing unit uses sharp shearing, the incision interface is flat, no droop, no burrs, and no waste. Beautiful shape.
2. The punching unit uses a united eight-mode turnplate to make sure the upper lengthen the working life. No need to change molds frequently, labor intensity is highly reduced. It is easy and quick to use. Producing efficiency is obviously higher than a traditional one.
3. The bending station is a double-deck worktable, which ensures the three working stations can be operated at the same time without any interference. The bending station adopts an open structure, very convenient to pick out the processed copper busbar.
4. The machine has four casters so it is easy to be moved everywhere. There are two operating modes, manual button, and footswitch, which are easily operated and used for workers. Based on users’ requirements, it can do all kinds of special shape processing with different molds or equipping parts.

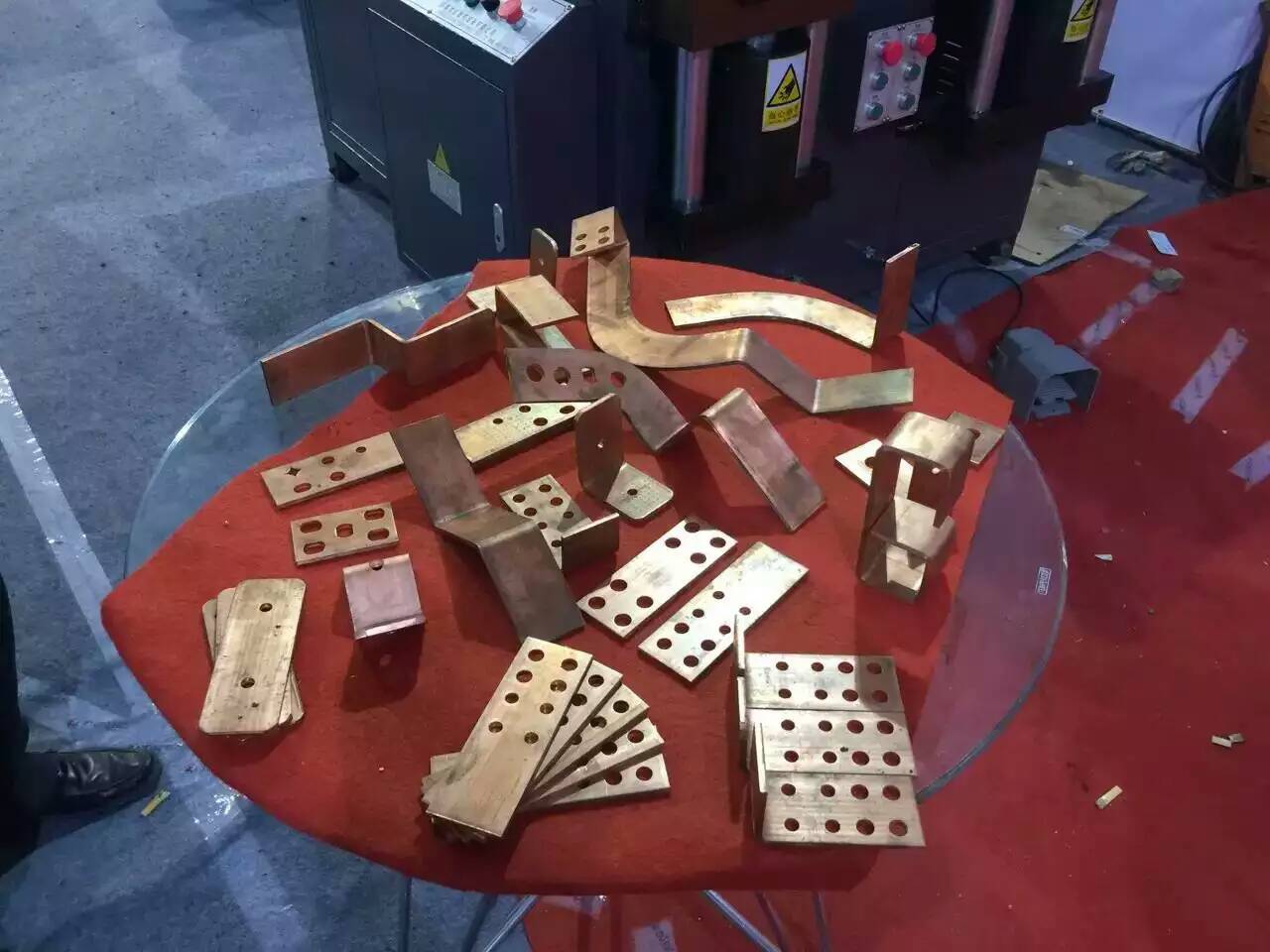

Processing Samples Display

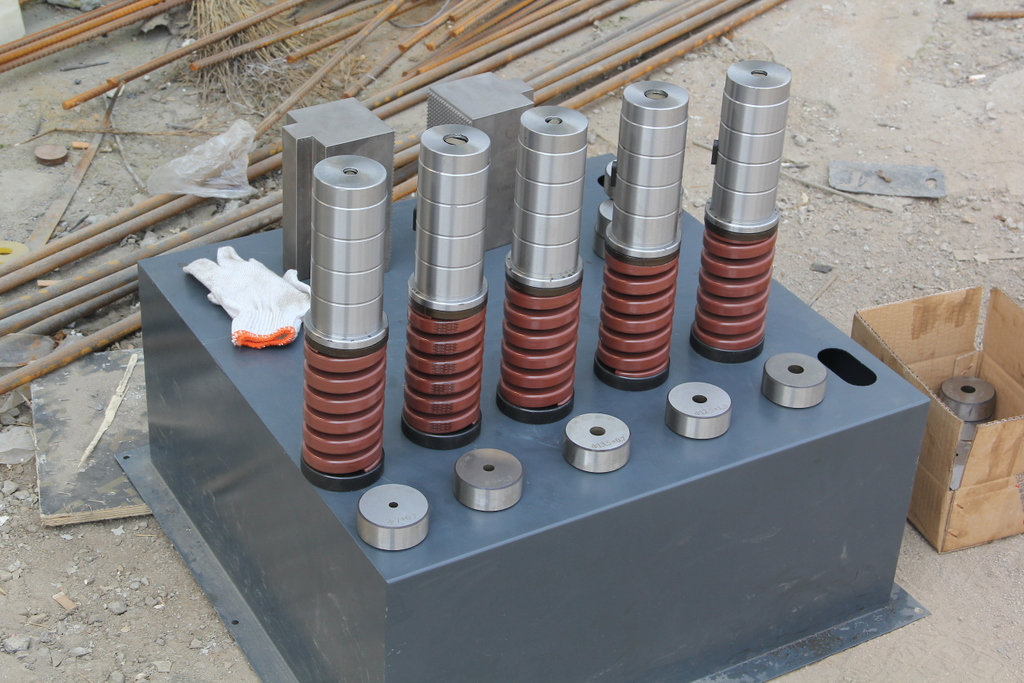

Machine Molds & Dies
If you are looking for busbar machine molds and dies, please clik the link.
https://www.jpbusbarmachine.com/busbar-chamfering-and-leveling-machine/
We have hole punching molds, cutting molds, bending molds, and customized molds.
LJMC Certifications
Busbar Machine Packaging and Shipping
Hot Tags: cnc double table busbar processing machine, China, suppliers, manufacturers, factory, price
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: punching, shearing and bending run on the same machine without stopping the other stations. Specified value: double-deck worktable with the bending station on its own deck and an open-structure bending unit. Comparison baseline: single-table 3-in-1 machines, where the operator performs one process at a time and the other stations idle.
Test conditions: moving between hole diameters on a mixed busbar batch. Specified value: united eight-mode turnplate holding eight punch modes in one turret, keeping upper and lower dies concentric. Comparison baseline: single-station die machines, where every hole diameter needs a die change, re-alignment and a fresh concentricity check.
Test conditions: shearing copper and aluminium busbar on the sharp shearing unit. Specified value: sharp shearing specified to give a flat interface with no droop, no burrs and no waste. Comparison baseline: saw or disc cutting, which removes material as kerf and leaves a burr that must be deburred.
