The HQ-600-B double-head busbar trunking bending machine is the LTMC machine for busduct and busway producers in Saudi Arabia, because it bends both ends of a connection busbar simultaneously instead of one end at a time. Nominal pressure is 600 kN and the published machining range is 3 × 30 mm to 6 × 200 mm, which covers the trunking sections used on GCC busduct projects; the machine measures 3600 × 1500 × 1000 mm. Both ends use hydraulic working mode for stable performance at high pressure, and the double bend at each end is formed in a single stroke, so cycle time per busbar is set by handling rather than by the press. A large-tonnage cylinder is paired with a high-flow gear pump to keep running speed up, and major components are sourced from established brands. Match the trunking section to the rated range before ordering.
HQ-600-B Double heads busbar trunking system copper bending machine
Main Function:

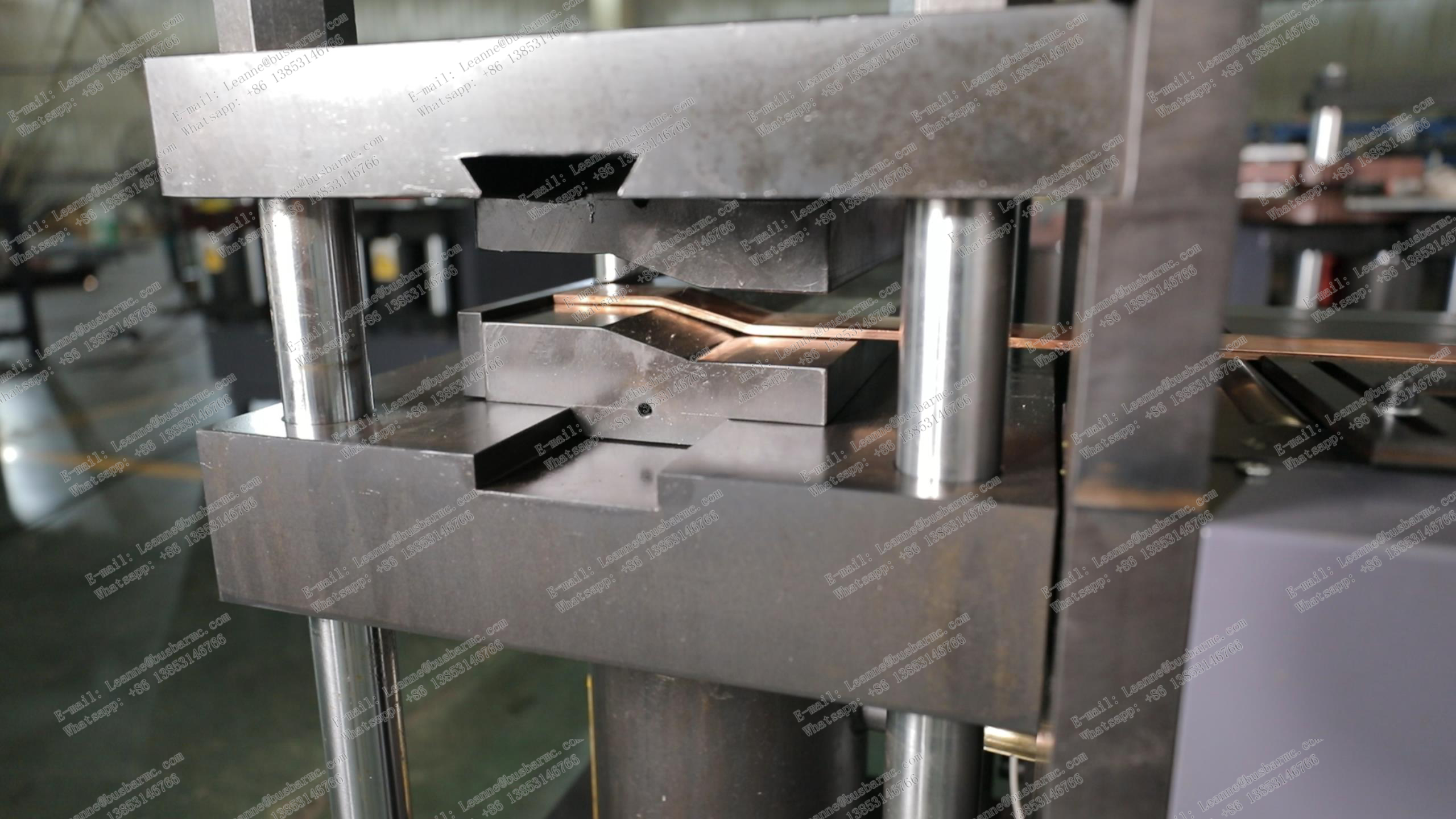

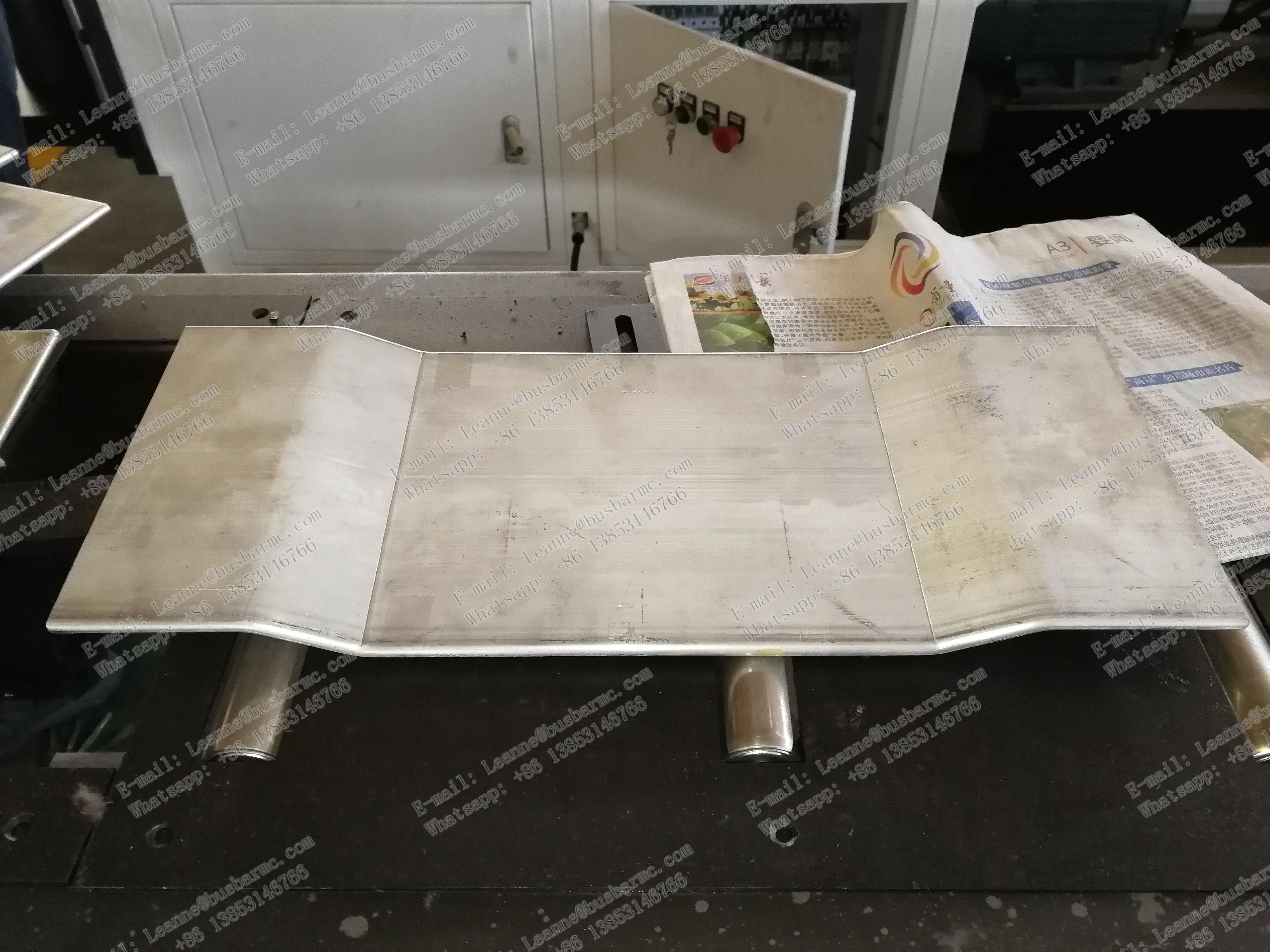

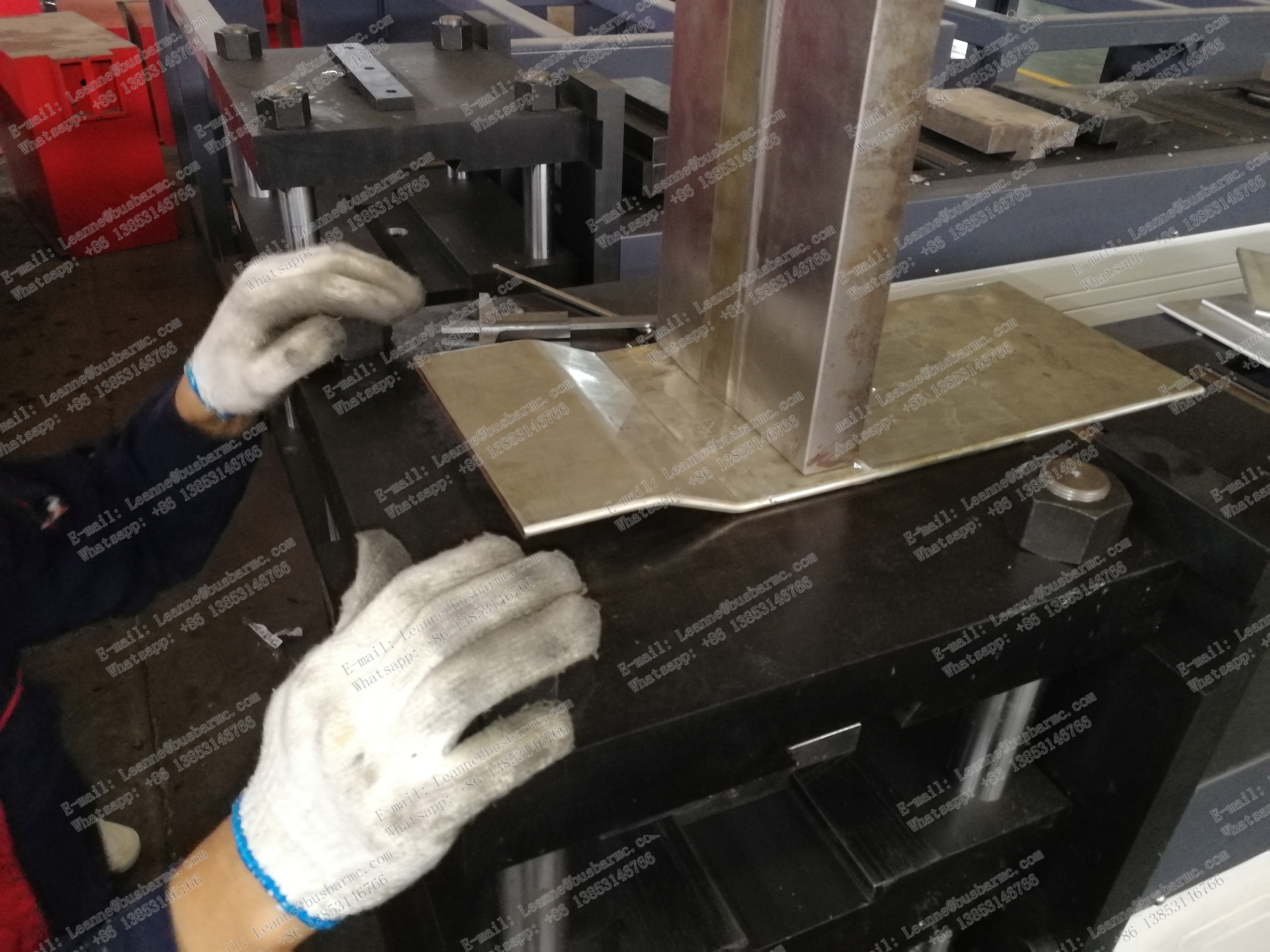

Double heads bus dust bending press a new type of processing equipment developed by our company,the main functions is bending the two ends of connection busbar of the line of the bus dust,and bending double bends once for each end of the bus dust.No need to change the direction of one bus dust,with the advantages of high processing speed,less steps,high accuracy,saving time and labor etc.
Main Features:
1.This machine mainly for bending the two ends of connection busbar of the line of the bus dust.
2.The two ends of the machine adopts hydraulic working mode, which has the advantages of high pressure, stable performance and so on.
3.The double bends of the two ends of the busbar are formed once, fast processing speed, high efficiency.
4.Large tonnage hydraulic cylinder with large flow gear pump, to ensure the running speed of the equipment.
5.Major components are well-known brands, to ensure the stability of the device.
Nominal pressure
600KN
Machining range
3 * 30-6 * 200mm
Overall size
3600 * 1500 * 1000mm
high efficiency
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: bending both ends of a busduct connection busbar with a double bend at each end. Specified value: double hydraulic heads forming the double bends at both ends in one operation at 600 kN nominal pressure. Comparison baseline: single-head bending, which needs four separate operations and four re-clamping steps for the same part.
Test conditions: bending copper and aluminium busbar across the rated trunking range. Specified value: 3 × 30 mm to 6 × 200 mm machining range at 600 kN nominal pressure. Comparison baseline: a 300 kN class bender, which cannot form the 6 × 200 mm end of the same trunking range.
Test conditions: continuous production running on the double-head machine. Specified value: large-tonnage hydraulic cylinder matched to a high-flow gear pump to hold equipment running speed. Comparison baseline: a standard-flow hydraulic power pack, where pump output rather than cylinder force limits the stroke rate on consecutive parts.
