JPMX-503ESK Hydraulic Busbar Processing Machine 16mm 200mm1.Main picture:This se
The 503U-3-C is the LTMC 3-in-1 busbar machine to specify when Saudi switchgear production regularly reaches 16 mm thick and 200 mm wide copper, because it steps the nominal force up to 500 kN and the punching range to ф4.3–ф30 mm without moving to a larger floor footprint. Punching, shearing and bending sit on one frame, and the bending unit uses an imported PLC control system for stable, repeatable angle setting. Published values for this class are 16 mm maximum thickness, 200 mm maximum width, ±1° bending accuracy and ±0.5° repeat accuracy. It is aimed at LV/MV panel board builders, transformer manufacturers and busduct fabricators in Saudi Arabia and the wider GCC who process a mix of bar sizes on one machine. Match the final configuration to the material size, process, throughput and tolerance stated in your purchase specification.
503U-3-C Hydraulic Busbar Processing Machine 16mm 200mm
1.Main picture:
This series 503U-3-C Hydraulic Busbar Processing Machine 16mm 200mm has three units: punching shearing and bending. It is easy to adjust each unit to shorten the processing time and improve the production efficiency.

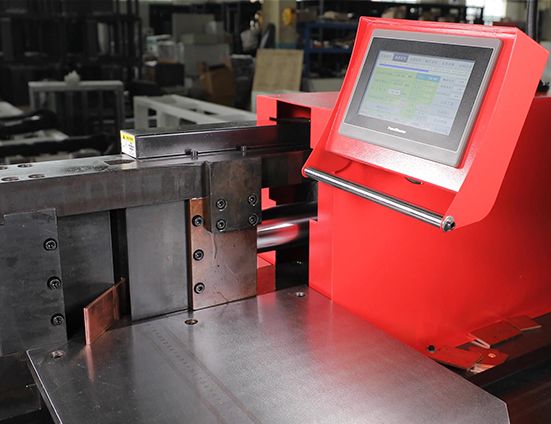

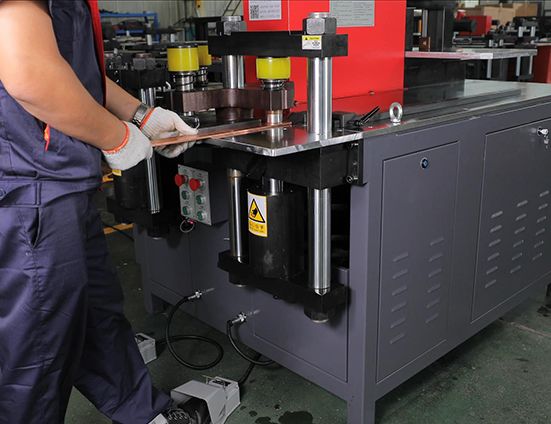

The bending unit uses the imported PLC control system, which has a stable system and high precision. It is used to process copper and aluminum busbars in different specification. By relative operation unit it can and quickly do all kinds of processing to copper and aluminum Busbar, such as shearing, punching(circular hole and oblong hole), flat/Vertical bending and knurling.change different mold to do special processing to copper bar, such as flat press, embossing, cable connector process, and can do cutting,flat Crushing pushing and bending.

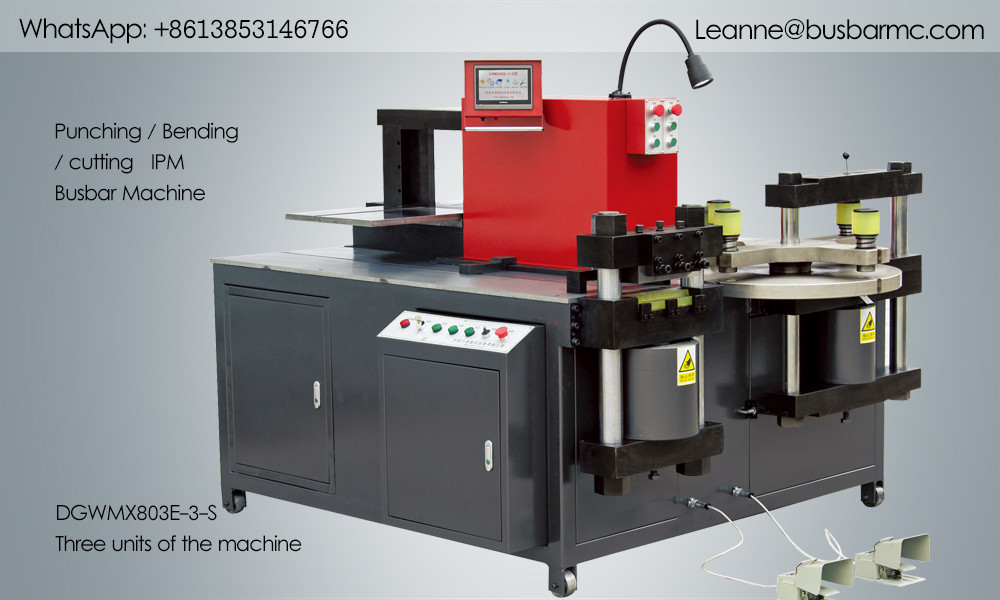

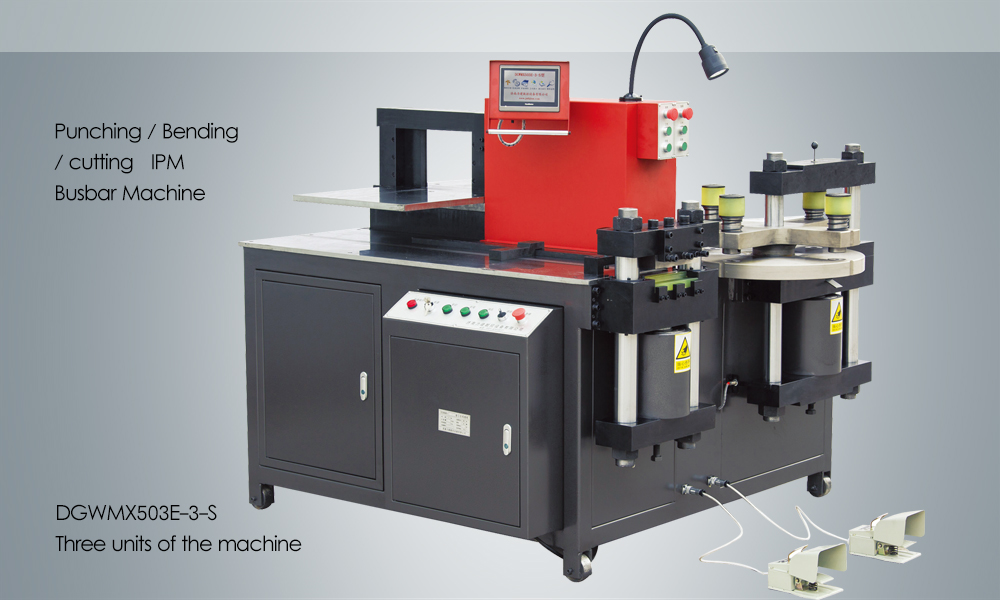

2.Three working units:
1)Punching unit:

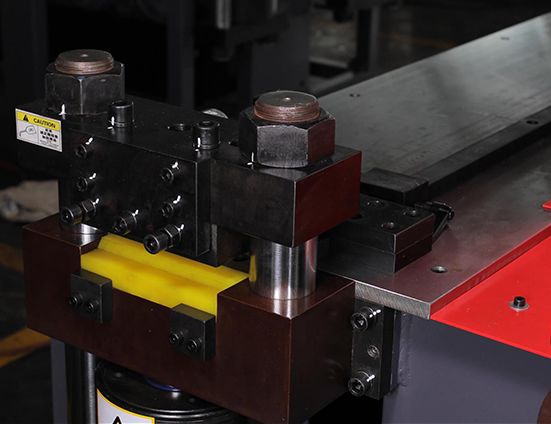

2)Shearing unit:
3)Bending units:
3.Packing and shippment:
1)Firstly,the machine must be packed with plastic sheet.
2)Secondly,the machine must be packed in a wood case.
4.Service:
24 hours free hotline will be waiting for you once you have bought our machine.
We will try our best to solve your problems by video.Quality will be our best brand for you.We will be your best choice.
E-mail: [email protected]
Whatsapp: +8613853146766
Skype: Leanne.Li88
www.busbarmc.com
Hot Tags: 503U-3-C cnc busbar processing machine 16mm 200mm, China, suppliers, manufacturers, factory, price
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: 500 kN nominal force on copper and aluminium busbar inside the rated envelope. Specified value: 16 mm maximum thickness and 200 mm maximum width, with a ф4.3–ф30 mm punching range. Comparison baseline: the LTMC 303U-3-C class, rated 12 mm × 160 mm at 300 kN, so the 503U-3-C extends the usable section by roughly 33% in thickness and 25% in width at 1.7× the force.
Test conditions: repeated horizontal bends at the upper end of the rated section, with the PLC bending unit engaged. Specified value: ±1° bending accuracy and ±0.5° repeat bending accuracy for the 503U-3-C class. Comparison baseline: hand-set press-brake bending at approximately ±2° with ±1° repeat.
Test conditions: switching between punching, shearing and bending duties on the same table without re-clamping the bar. Specified value: three independently adjustable units on a single frame, so one operator changes process instead of machine. Comparison baseline: three separate standalone machines, where the same job needs three setups and three handling steps.
