HQ40-BC CNC Copper Busbar Cutting Bending MachineProductCNC Copper Busbar Bendin
The HQ40-BC is the LTMC machine for Saudi switchgear builders who need long copper busbar cut flat and then formed into a Z profile in one pass, because it pairs a 300 kN single-blade cutting unit with a CNC adjustable bending unit on closed-loop displacement sensor feedback. Published values are 210 mm maximum process width, 10 mm maximum process thickness, 3200 mm maximum process length and a 30 mm maximum tensile height, on a 9600 × 700 × 1400 mm machine. The single-blade shear produces a flat notch with no burr, so parts go straight to assembly without a deburring operation, and the CNC bending unit holds repeat position on the Z forms used in panel and busduct layouts. It suits LV/MV panel boards, busduct runs and transformer connections. Confirm the process length and tooling against your purchase specification.
HQ40-BC CNC Copper Busbar Cutting Bending Machine
Product
CNC Copper Busbar Bending Machine
Serial
HQ40-BC
Main Function:
To cutting bending the copper/aluminum busbar ect.
Main Feature:

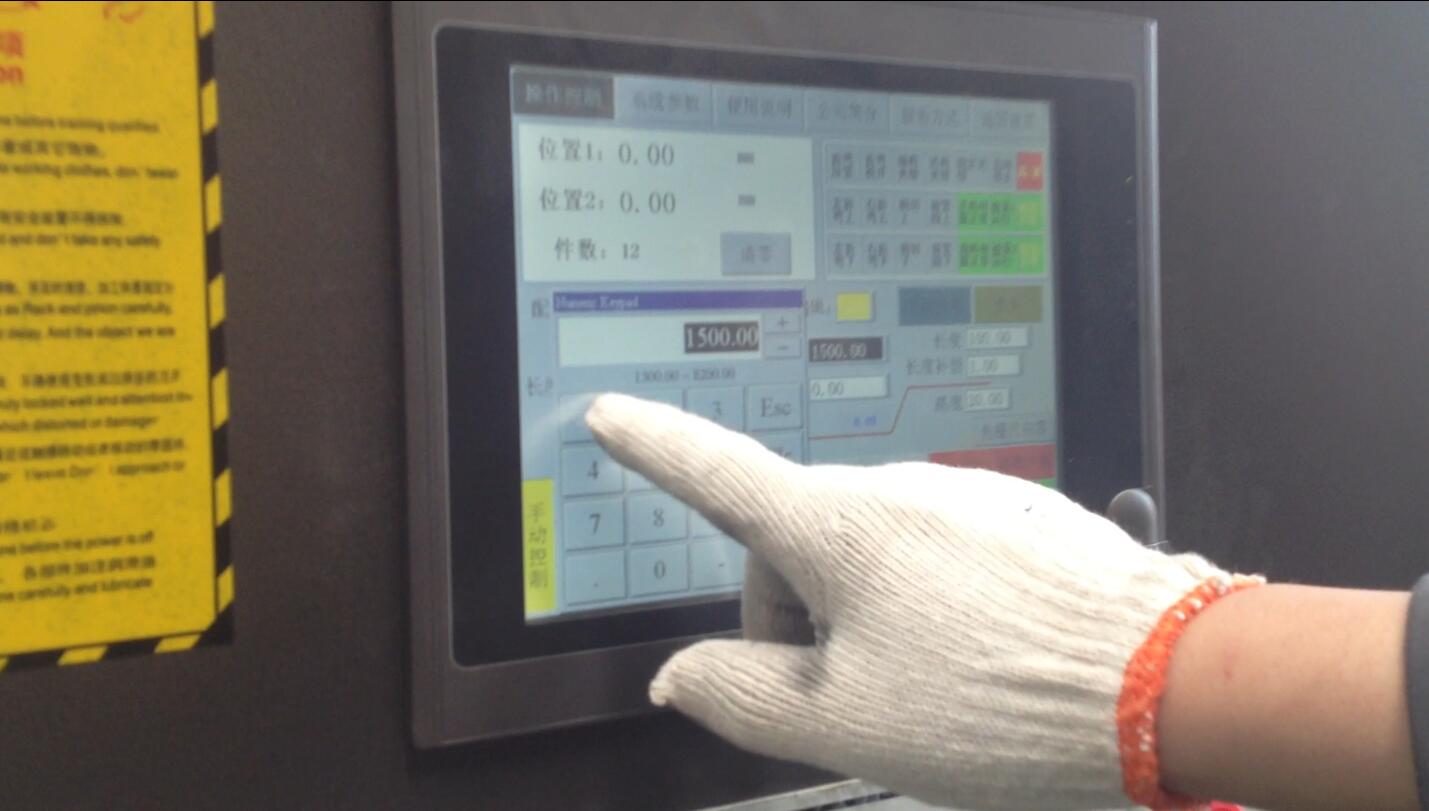

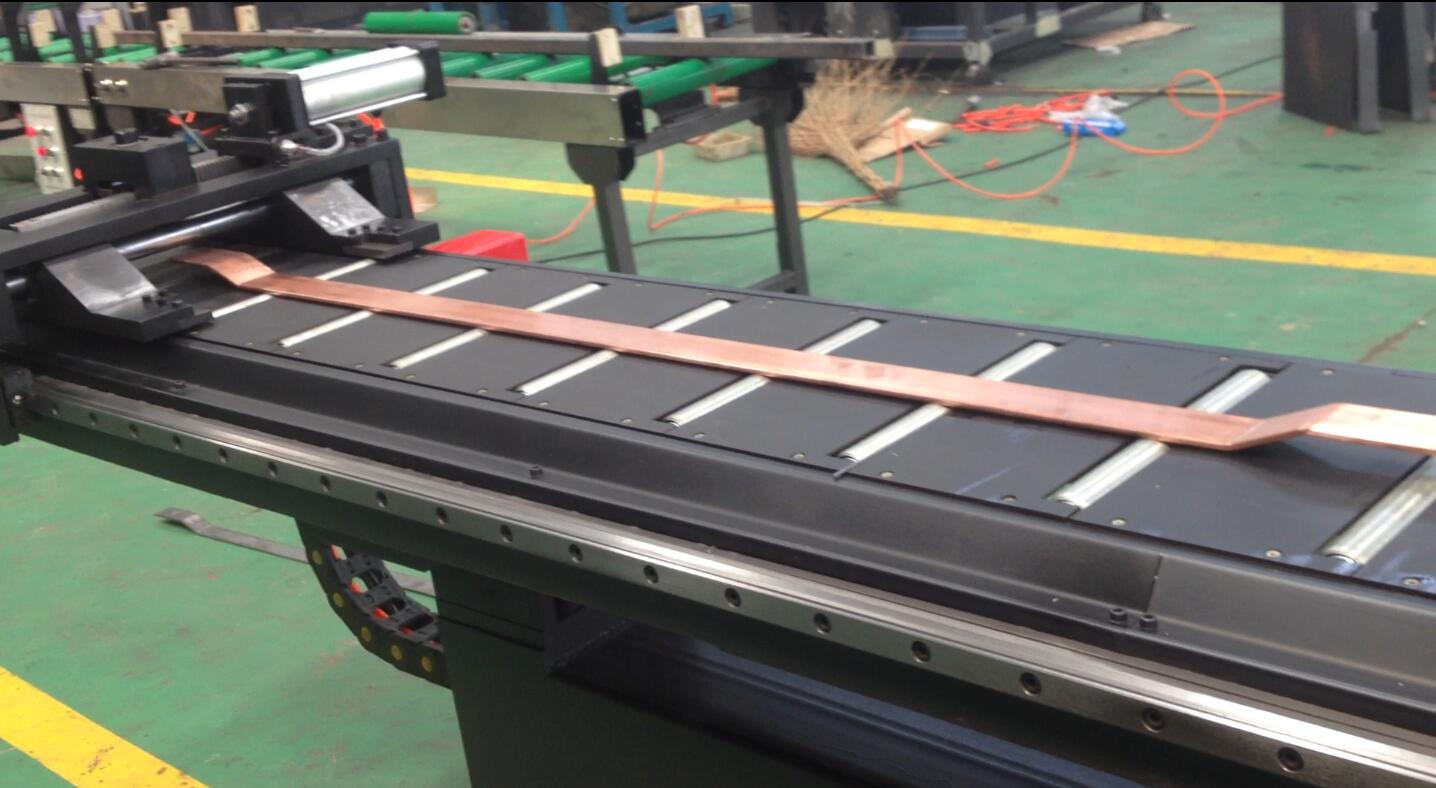

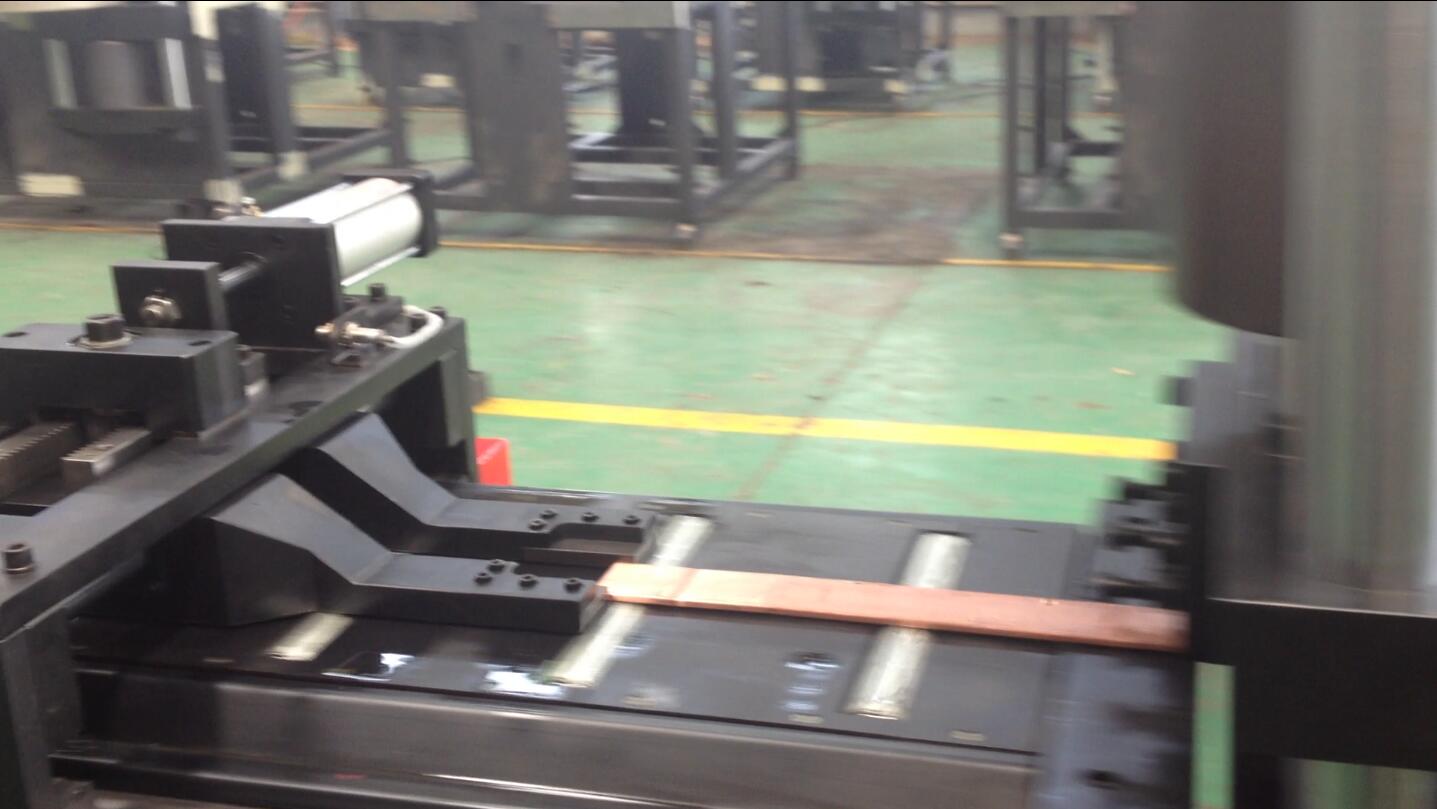

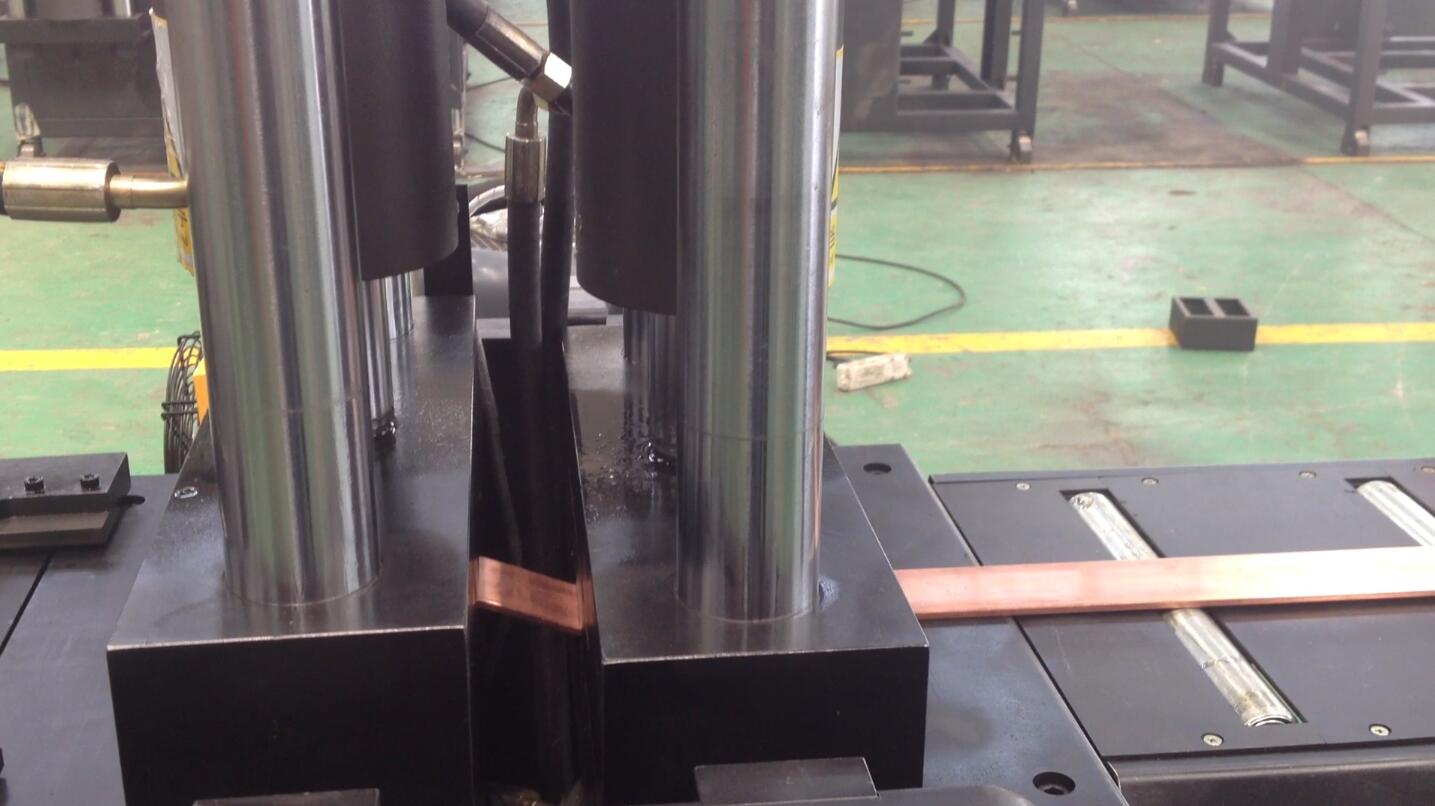

HQ40-BC CNC copper busbar cutting bending machine has a cut, bend two units, can achieve different specifications of the copper row of shear and "Z" type bending. Cutting unit with single-blade shear, notch flat, no burr, can be processed with a maximum width of 210 thickness of 10mm copper; "Z" bending forming unit, the unit is highly adjustable CNC machining unit, closed by a straight line Displacement sensor feedback to the numerical control system, and can be adjusted according to the measured value adjustment can be processed with a auto bender machine maximum width of 210, thickness 10mm, length of 3200mm copper.
Tech Paramete:
Max. Punching Force (KN): 300KN
Max. Process Width (MM): 210mm
Max. Process Thickness (MM): 10mm
Max. Process Length (MM): 3200mm
Max.Tensile Height (MM):30mm
Overall size(MM): 9600×700×1400mm
Video:
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: cutting copper up to 210 mm wide and 10 mm thick with the single-blade shear unit. Specified value: single-blade shear producing a flat notch with no burr at up to 210 mm width and 10 mm thickness. Comparison baseline: saw or disc cutting, which leaves a burr and a kerf loss, requiring a separate deburring step.

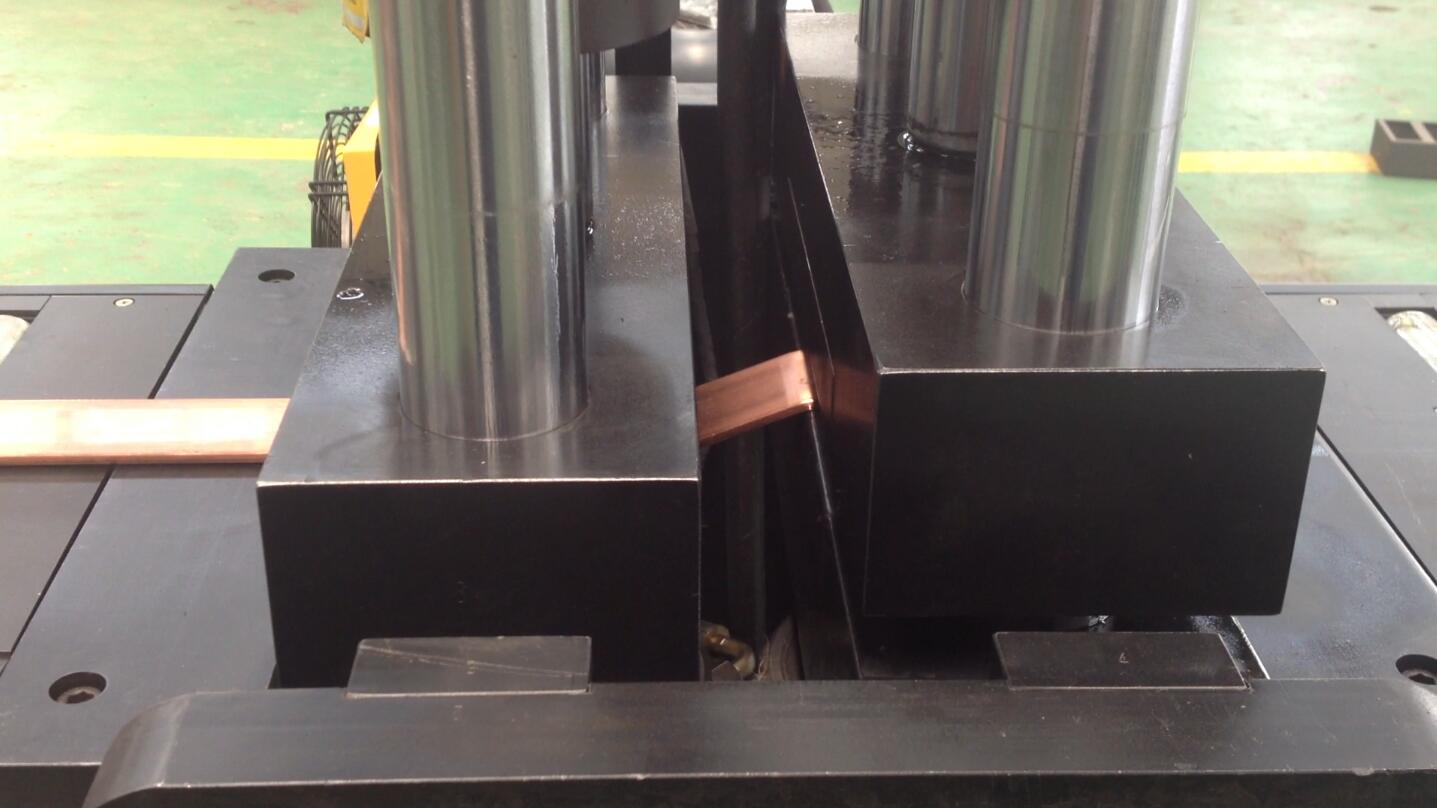

Test conditions: repeated Z-type bends on copper up to 210 mm wide, 10 mm thick and 3200 mm long. Specified value: CNC adjustable bending unit with closed-loop displacement sensor feedback moving the bending head. Comparison baseline: hand-set mechanical stops on a press brake, where repeat position depends on the operator and varies between parts.
Test conditions: processing a 3200 mm busbar through cutting and Z bending on one machine. Specified value: 3200 mm maximum process length on a 9600 × 700 × 1400 mm footprint, with a 30 mm maximum tensile height. Comparison baseline: separate shear and press brake, which need the 3200 mm part lifted and re-positioned between two machines and two setups.
