HX160-260 copper busbar leveling machine busbar bending machineMain Features:bus
The HX160-260 is the LTMC roller-type busbar leveling machine to add alongside punching and bending equipment in Saudi and GCC panel shops, because it straightens copper and aluminium busbar up to 160 × 12 mm (HX160) or 260 × 12 mm (HX260) so that bent or kinked bars can be reused rather than scrapped. Motor power is 3 kW on the 160 build and 5.5 kW on the 260 build, with machine sizes of 1580 × 800 × 1300 mm and 1700 × 1000 × 1300 mm. The machine uses curvature compensation rather than a plain roller arrangement, which reduces workpiece slippage, distributes stress more reasonably and extends roller service life while saving energy. Output is fast and the operation is simple, which suits shops that level incoming bar before processing. Confirm the build and roller set against your purchase specification.

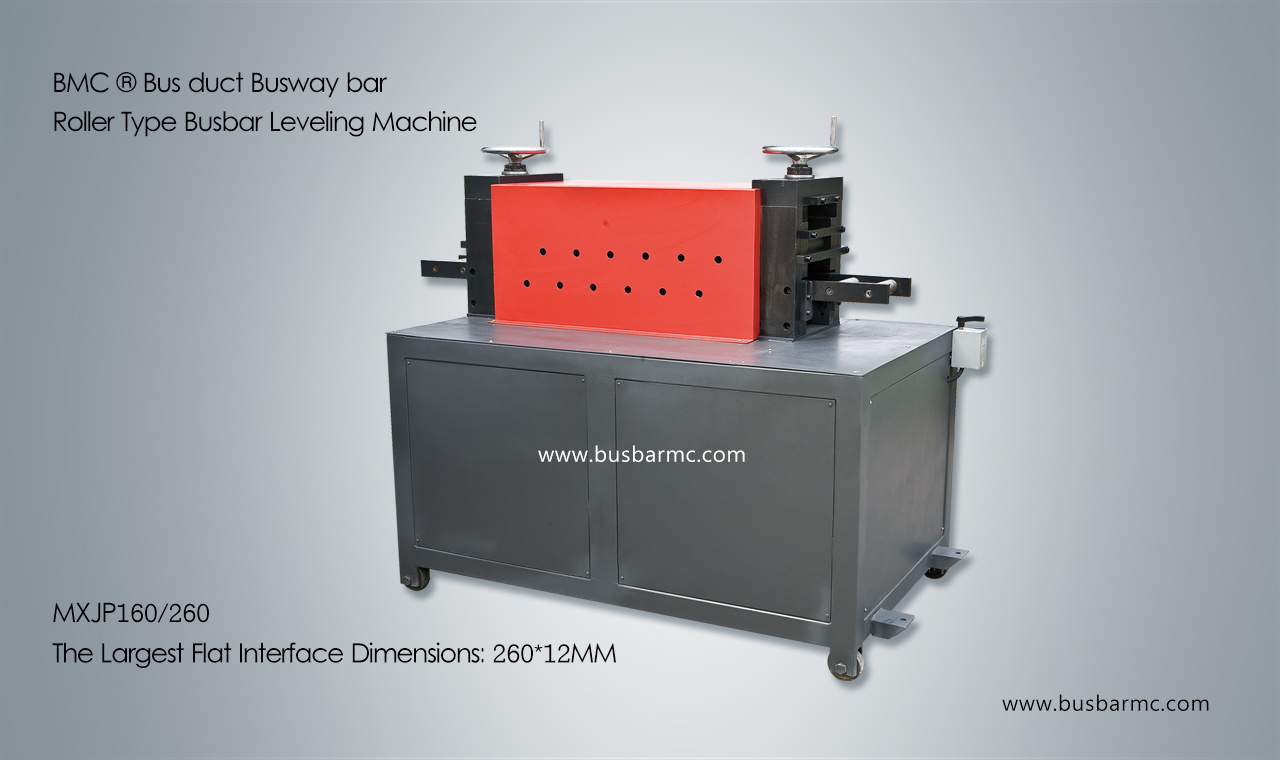

HX160-260 copper busbar leveling machine busbar bending machine
Main Features:
This machine is roller type busbar leveling machine with Fast output,efficient,simple and convenient operation,can match the busbar processing machine Convenient and quick.
This machine is adopting curvature compensation technique.compared with the traditional roller type,the phenomenon of the workpiece slippage has been improved.reasonable stress.Save energy more than doubled. At the same time greatly extended the service life of the machine.
Power Of Motor
3KW/5.5KW
The Largest Flat Interface Dimensions
160*12MM/260*12MM
Size Of copper busbar machine
1580*800*1300mm/1700*1000*1300mm
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: leveling copper or aluminium busbar on the roller-type machine. Specified value: HX160: 160 × 12 mm largest flat interface, 3 kW motor, 1580 × 800 × 1300 mm; HX260: 260 × 12 mm largest flat interface, 5.5 kW motor, 1700 × 1000 × 1300 mm. Comparison baseline: a single-width leveler, which needs a second machine when the busbar width changes between 160 mm and 260 mm.
Test conditions: leveling bent or kinked busbar on consecutive parts. Specified value: curvature compensation technique specified to reduce workpiece slippage, distribute stress and extend roller service life while saving energy. Comparison baseline: conventional roller-type levelers, where the workpiece slips and rollers wear faster under the same duty.
Test conditions: recovering a bent busbar that cannot be installed as-is. Specified value: roller leveling restores the bar so it can be re-processed on the busbar machine. Comparison baseline: scrapping the bent bar and cutting a new length, which loses material and adds a cutting operation.
