XT-200 Portable busbar machine hydraulic busbar cutterMain Features:Semi automat
The XT-200 is the LTMC portable hydraulic busbar machine to keep on a Saudi or GCC site for single-bar work, because semi-automatic hydraulic control punches round and oblong holes, cuts and bends copper and aluminium busbar by simply selecting the matching processing die for the operation. It is built for high and low voltage switch cabinets and power transmission equipment, where the busbar is already installed or the run is too short to move to a workshop machine. Small volume and light weight make it easy to carry between floors, while hydraulic control gives high thrust and high efficiency from a compact unit. It is a single-station tool, so output depends on die changes and operator handling rather than on servo positioning. Confirm the die set against the bar sections and hole sizes in your purchase specification.

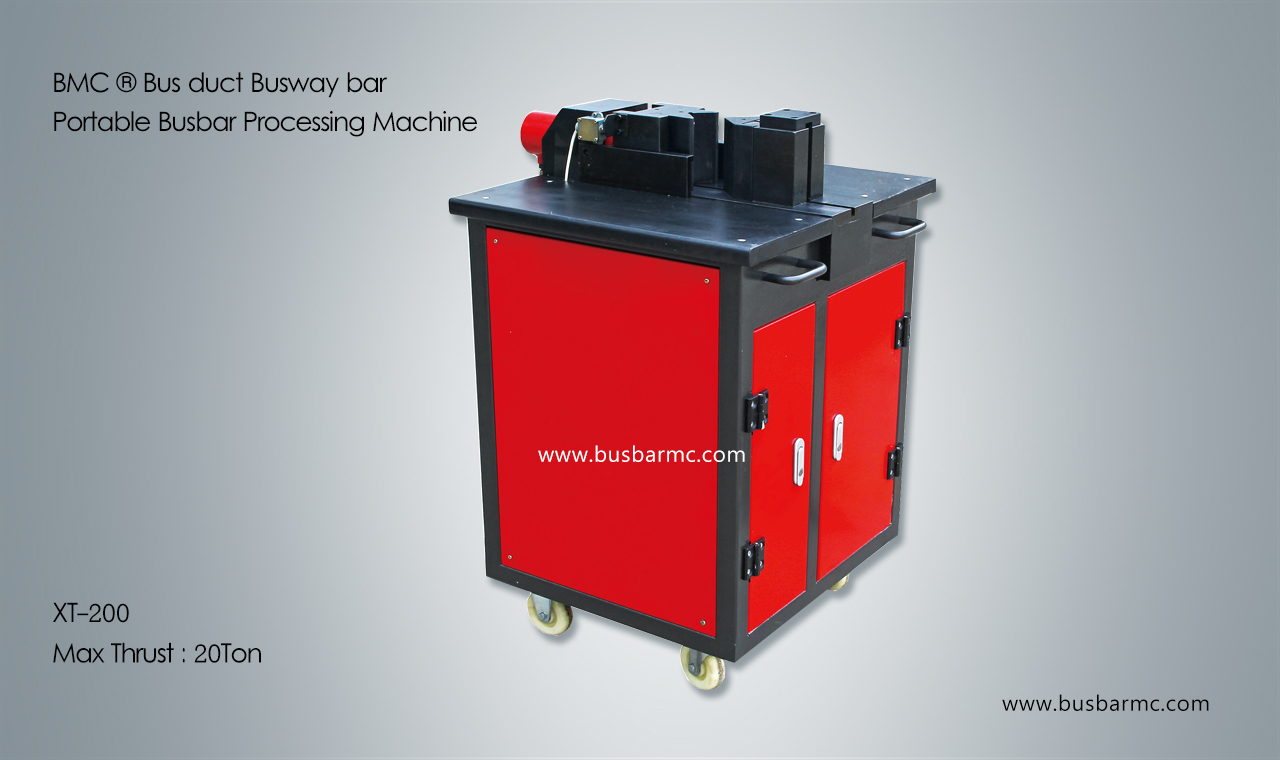

XT-200 Portable busbar machine hydraulic busbar cutter
Main Features:
Semi automatic controlled,specailly using in copper/ aluminum busbar in High and low voltage switch cabinet and power transmission equipment busbar punching.
When working, only need to choose the corresponding processing mold,can conveniently and quickly cut ,punch( round and oblong hole ect) copper punching machine,bend the copper and aluminum busbar.
Applicating hydraulic control,small volume, light weight,with the characteristics of high thrust and high efficiency.
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: moving the tool to installed busbar inside a switch cabinet or on site. Specified value: compact and light hydraulic unit that can be carried, running from a single processing die per operation. Comparison baseline: a fixed 1220–2100 kg workshop machine, which cannot be moved to installed busbar.
Test conditions: punching and cutting copper and aluminium busbar with the matching die fitted. Specified value: hydraulic control specified for high thrust and high efficiency from a small-volume unit. Comparison baseline: manual lever punches, where operator effort sets the available force and limits the bar thickness.
Test conditions: cutting, punching (round and oblong) and bending the same bar with one hydraulic head. Specified value: semi-automatic control with a selectable processing die for cutting, round or oblong punching and bending. Comparison baseline: three dedicated hand tools, which need separate tools on site and separate handling for each operation.
