LT CNCMN-200A CNC Busbar Chamfering Machine processes copper & aluminum busbars with thickness 4-16mm, width 30-200mm. Features 6000rpm spindle, 5-axis CNC control, automatic 6-station tool changer, and BT40 tool holders. Professional arc milling and edge processing solution.
The LT CNCMN-200A is the LTMC machine to specify where copper and aluminium busbar ends in Saudi and GCC switchgear have to be chamfered, arc-milled and deburred to a controlled radius rather than ground by hand, because a 6000 r/min BT40 spindle on a gantry structure with five CNC axes produces the arc in one pass and the six-station inline tool magazine changes cutters automatically to suit the bar thickness. Published values are 4–16 mm thickness, 30–200 mm width and 150–6000 mm length, with ±0.08 mm X and Y positioning accuracy and a 12 kW total power. Control is Beckhoff, servo drive and motors are Rexroth, and ball screws and linear guides are HIWIN/TBI. It suits panel builders, busduct manufacturers and transformer plants that deburr a high volume of busbar ends. Confirm the cutter set against the radius required on your purchase specification.
CNCMN-200A CNC BUSBAR CHAMFERING MACHINE
The main function of the busbar arc processing center is to perform chamfering (arc) processing on the ends of copper and aluminum busbars with thickness 4-16mm and width 30-200mm.
▲ Gantry mechanical structure, simple design, stable operation, good structural rigidity

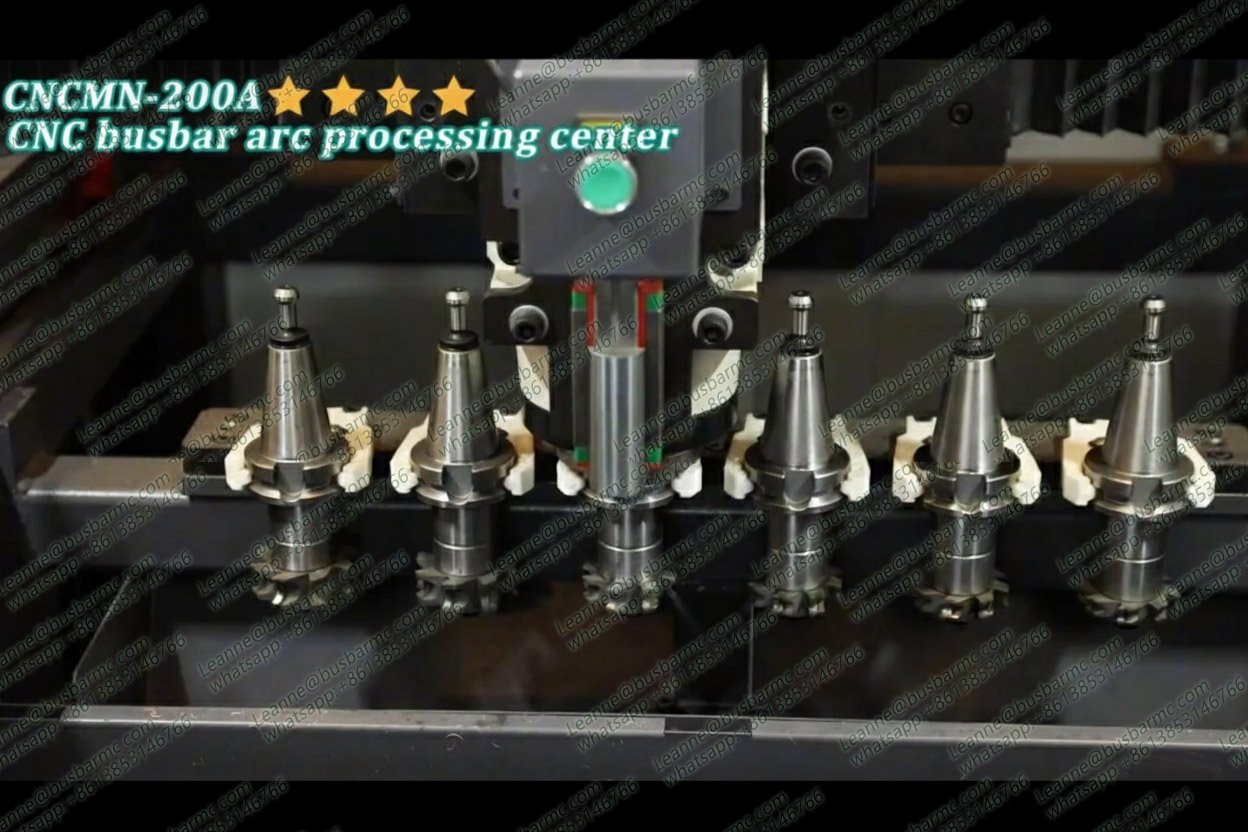

▲ Six-station inline tool magazine, automatic tool change with BT40 tool holders

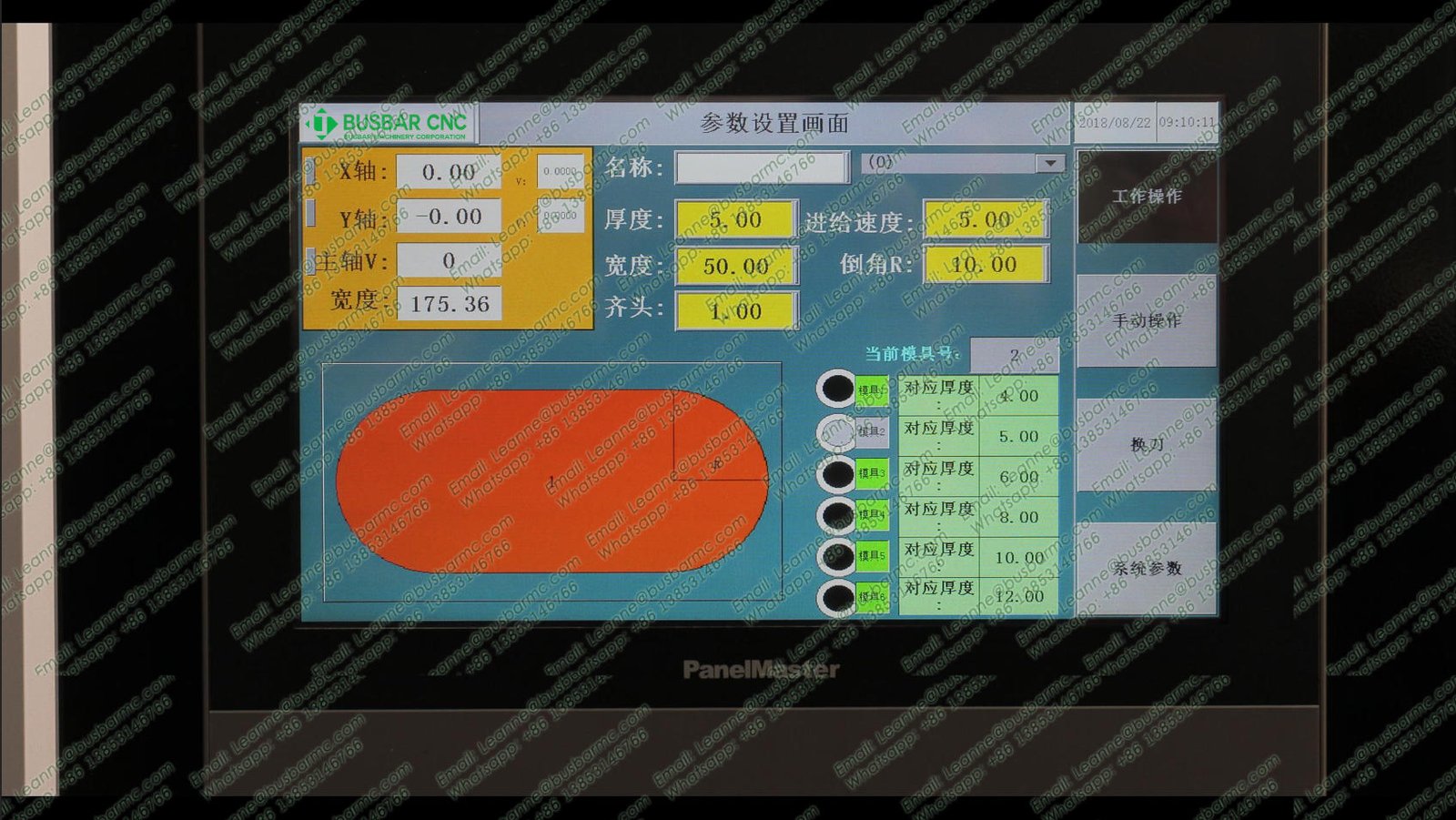

▲ 5-axis CNC control system with 10.4″ LCD display
▲ Maximum spindle speed: 6000 r/min, main motor power: 3.7 KW
▲ Processes busbars: length 150-6000mm, width 30-200mm, thickness 4-16mm
| No. | Technical Parameters | Unit | Value | No. | Technical Parameters | Unit | Value |
| 1 | Maximum spindle speed | r/min | 6000 | 2 | Main motor power | KW | 3.7 |
| 3 | Maximum X-axis travel | mm | 525 | 4 | Maximum speed of X axis | m/min | 15 |
| 5 | X-axis positioning accuracy | mm | ±0.08 | 6 | Maximum travel of X axis | mm | 500 |
| 7 | Maximum Y-axis speed | m/min | 15 | 8 | Positioning accuracy of Y axis | mm | ±0.08 |
| 9 | Maximum Z-axis travel | mm | 130 | 10 | Positioning accuracy of Z axis | mm | ±0.05 |
| 11 | Workpiece length that can be processed | mm | 150-6000 | 12 | Machinable workpiece width | mm | 30-200 |
| 13 | Machinable workpiece thickness | mm | 4-16 | 14 | Dimensions | mm | 2260×1580×2100 |
| No. | Technical Parameters | Unit | Value | No. | Technical Parameters | Unit | Value |
| 1 | Number of CNC axes | PC | 5 | 2 | X-axis servo motor power | KW | 2 |
| 3 | Y-axis servo motor power | KW | 2 | 4 | Z-axis servo motor power | KW | 1 |
| 5 | Air source pressure | MPa | 0.6-0.8 | 6 | Hydraulic pump motor power | KW | 2 |
| 7 | Total power | KW | 12 | ||||
Product Images

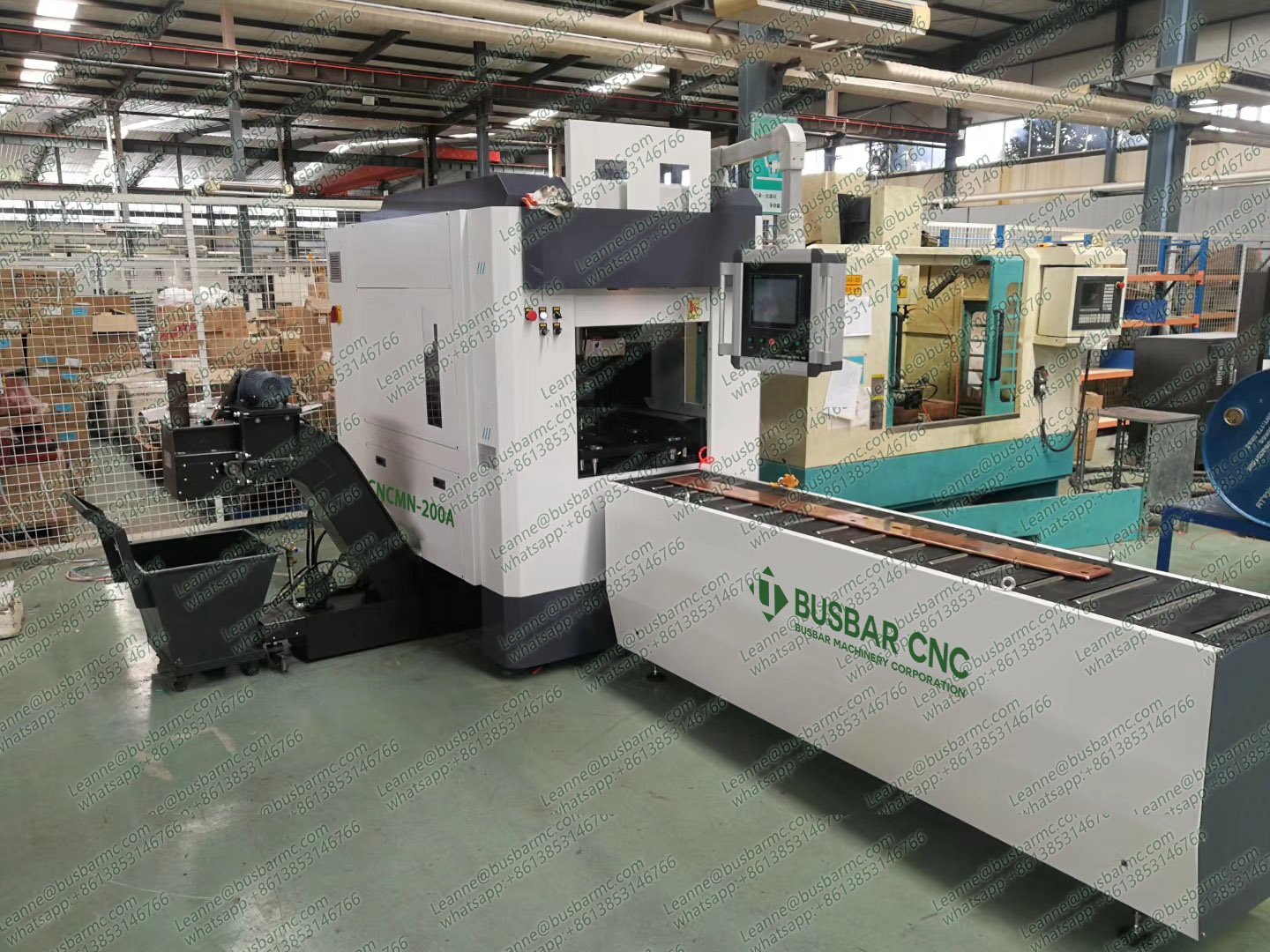

CNC Busbar Chamfering Machine

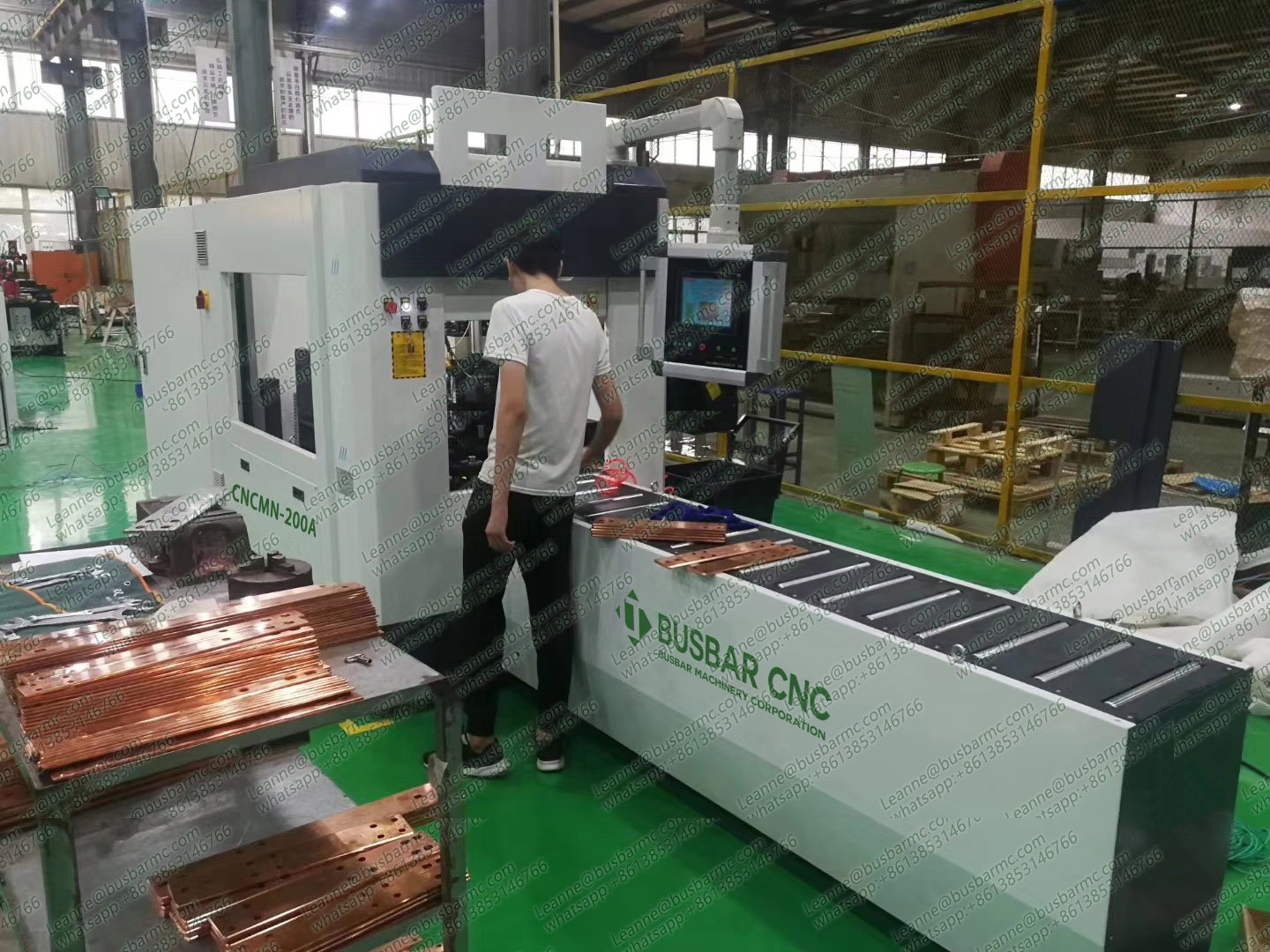

CNC Busbar Arc Milling Machine

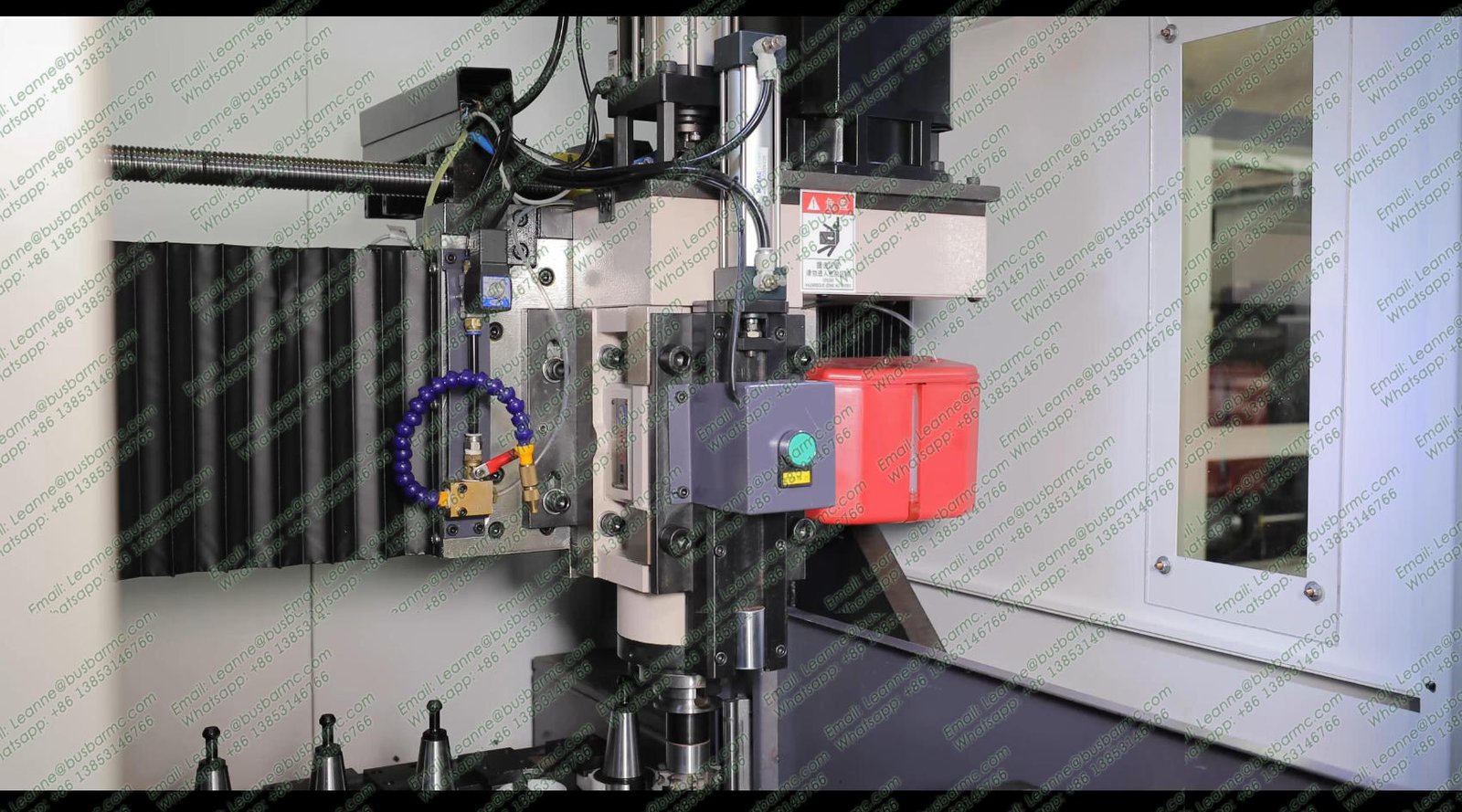

Copper Busbar Edge Chamfering Machine

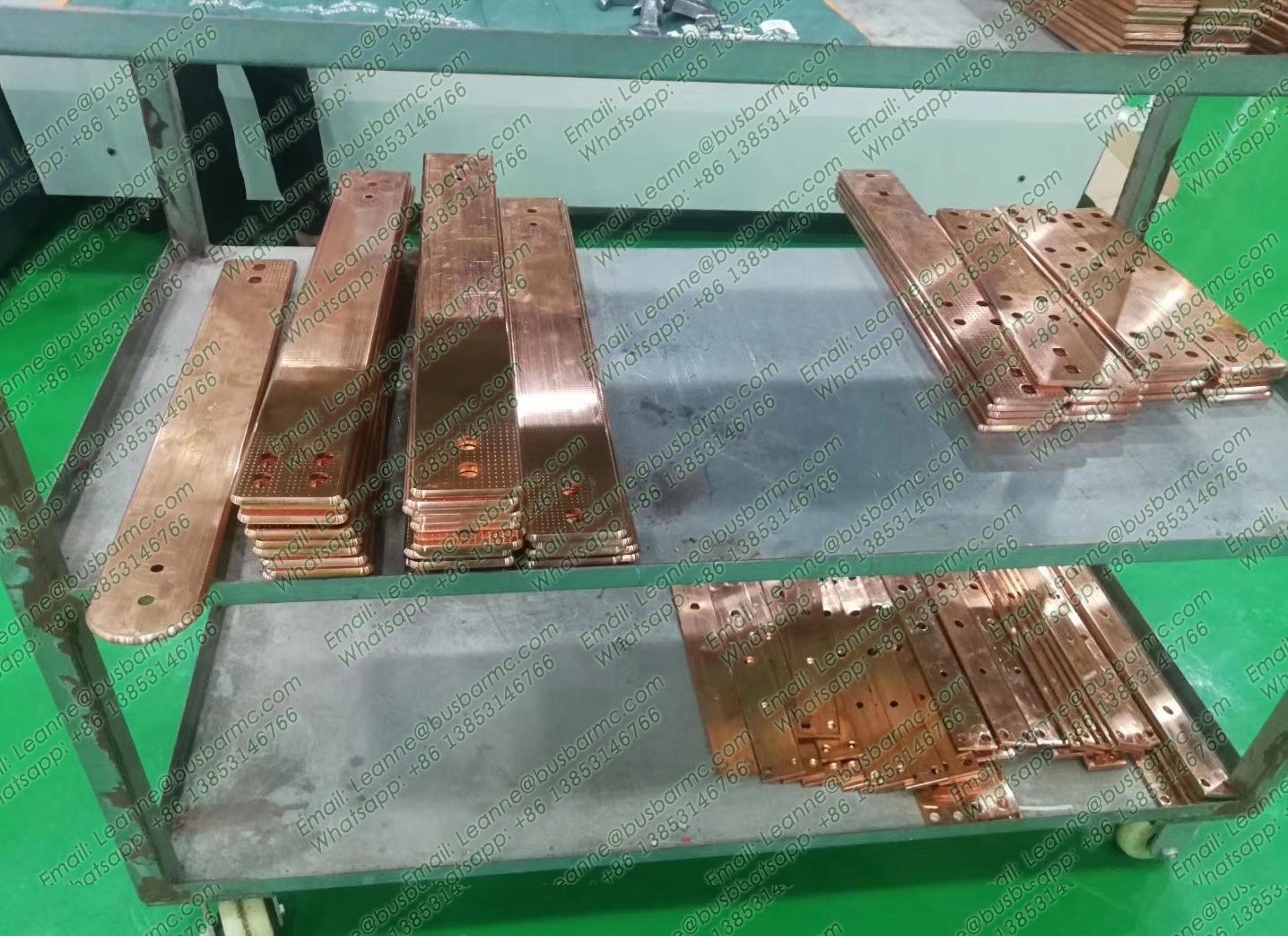

Copper Aluminum Busbar Processing Machine
CNC Copper Bar Chamfer Cutting Machine

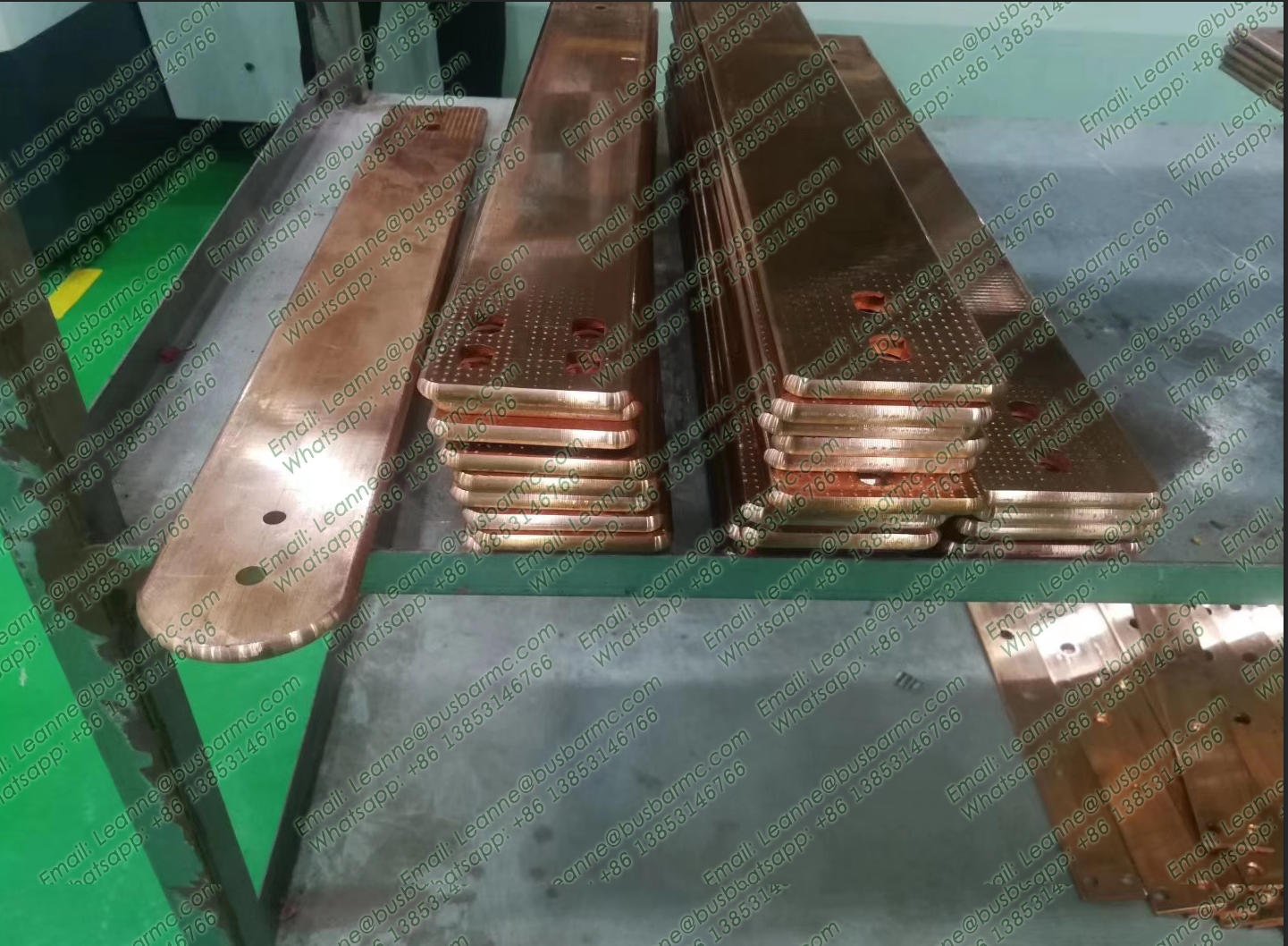

Busbar Chamfering Machine
Busbar Chamfering Machine
Busbar Chamfering Machine
| No. | Item | Quantity | Description |
| 1. | Milling cutter | 6 sets | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
| 2. | Tool holder device | 1 set | |
| 3. | Screwdrivers | 2 sets | 2 bigger screwdrivers, 2 small screwdrivers |
| 4. | Inductive proximity sensor | 1 pc | |
| 5. | Double-head wrench | 1 set | |
| 6. | Oil sprayer | 1 pc | |
| 7. | Oil lubrication box | 1 pc | |
| 8. | Bending shaft hole cover | 6 pcs | |
| 9. | Oil hose | 1 pc |
Video Demonstration
Frequently Asked Questions
Q1: What is the main function of the CNCMN-200A CNC busbar chamfering machine?
The main function is to perform chamfering, arc milling, and edge processing on copper and aluminum busbar ends with thickness 4-16mm and width 30-200mm.
Q2: What type of structure does this machine use?
The machine uses a gantry mechanical structure with a fully welded steel plate box design, providing high rigidity and stable operation.
Q3: How many tools can the machine hold?
It is equipped with a six-station inline tool magazine that supports automatic tool change using BT40 tool holders.
Q4: What CNC control system does the machine use?
The machine adopts a 5-axis CNC control system with a 10.4″ LCD display, capable of program storage, workload counting, and simulation.
Q5: What is the maximum processing size of the busbar?
The machine can process busbars with length 150-6000mm, width 30-200mm, and thickness 4-16mm.
Product Tags
CNC busbar chamfering machine, CNC busbar arc milling machine, copper busbar edge chamfering machine, aluminum busbar arc cutting machine, copper aluminum busbar processing machine, CNC busbar forming machine, busbar arc shaping equipment, busbar end-face milling machine, CNC copper bar chamfer cutting machine, automatic busbar edge rounding machine
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: chamfering and arc milling busbar ends on 4–16 mm thick copper and aluminium. Specified value: ±0.08 mm X-axis and ±0.08 mm Y-axis positioning accuracy with a 6000 r/min BT40 spindle. Comparison baseline: hand grinding or hand filing of busbar ends, where the arc radius varies part to part and cannot be measured against a specification.
Test conditions: running a batch that mixes bar thicknesses requiring different cutters. Specified value: six-station inline tool magazine with automatic tool change on BT40 holders, cutters at 4 mm, 5 mm, 6 mm, 8 mm, 10 mm and 12 mm. Comparison baseline: a single-cutter head, where each thickness change needs the operator to stop the machine and re-fixture the tool.
Test conditions: processing long busbar up to the rated length. Specified value: 150–6000 mm length, 30–200 mm width and 4–16 mm thickness, with 525 mm X-axis and 500 mm Y-axis working stroke. Comparison baseline: bench-mounted chamfering tools, where the busbar has to be re-positioned between cuts on long bars.

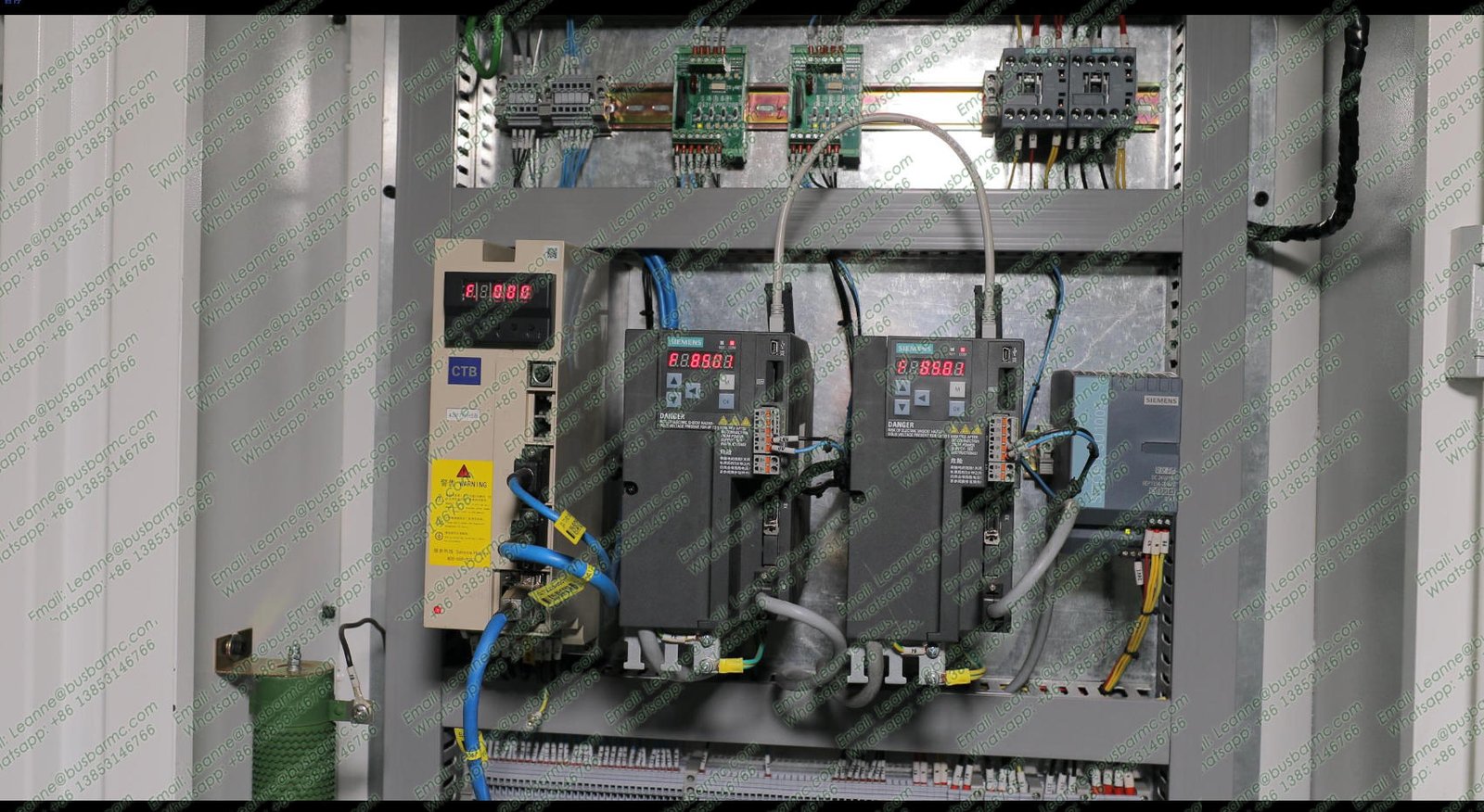

Test conditions: component audit of the machine as published. Specified value: Beckhoff PLC, Rexroth servo drives and servo motors, HIWIN/TBI ball screws and linear rolling guides, HSBC pneumatic parts, Shanghai Fengyi hydraulic parts, Jingyao spindle. Comparison baseline: a control package without named drive manufacturers, where positioning accuracy cannot be traced to a specific servo specification.
