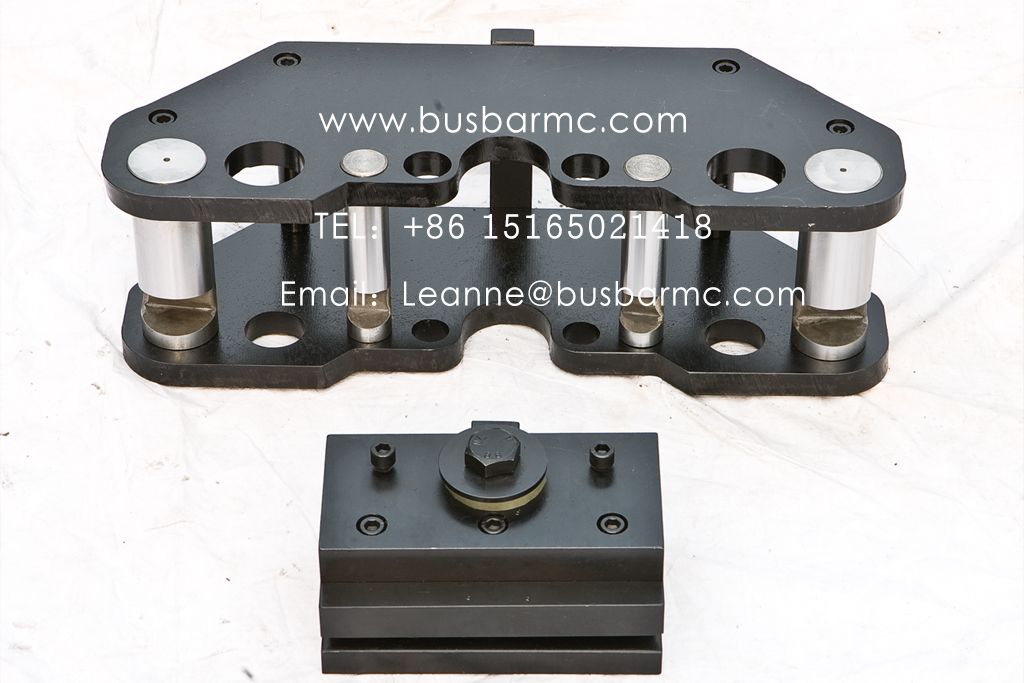

Vertical bending mold for busbar machineVertical bending moldcnc bending machine
The LTMC vertical bending mould is the tooling to specify where busbar has to be bent on edge rather than flat, because it is machined in the same ISO- and CE-certified plant as the LTMC 3-in-1 and bending machines and is therefore matched to the bending station already on the shop floor. Vertical bending is the operation used for stand-up bends in LV panel and switchgear layouts, and the mould defines both the bend radius and the maximum section the station can accept. LTMC has more than ten years of mould development experience, a workshop team of over 50, and holds multiple technology and appearance patents on its mould designs. Confirm the bar width and thickness, and the platform's published vertical bending capacity, before ordering.
Vertical bending mold for busbar machine
Vertical bending mold
cnc bending machine manufacturers
Mould Manufacturing Equipment
BMC company has passed ISO certification、 CE certification and many kinds of patents on Mould technology and appearance.After more than 10 years development,our company has built a big team of Mould Manufacturing Equipment tech engineers and sales engineers,after-sale engineers as well.And more than 50 workers in our workshop.
Honesty comes first,Innovation development .BMC is always offering you the best service and highest quality,wish can cooperate with you hand by hand.
Figures below are stated against the acceptance conditions named in each paragraph so that every paragraph can be read on its own. Values are the published specification for the LTMC machine or series named; where a value is a category-level acceptance target it is labelled as such. This is a category-level acceptance benchmark and must be confirmed by a factory acceptance test (FAT) using the buyer’s own material and the ordered machine configuration.
Test conditions: selecting a vertical bending mould for a specific busbar machine. Specified value: mould matched to the published vertical bending capacity of the machine — for example 10 × 100 mm on the LTMC 303U-3-C class and 12 × 120 mm on the 503U-3-C / 803U-3-C class. Comparison baseline: fitting a mould larger than the station's rated vertical bending size, which overloads the bending unit.
Test conditions: bending busbar on edge in copper or aluminium. Specified value: in-house machined mould held to the same ISO- and CE-certified production standard as the machine. Comparison baseline: an unhardened or worn third-party mould, which marks the bar and loses the bend radius over a batch.
Test conditions: installing the mould on a busbar machine already in production. Specified value: mould produced in the same plant as the machine, so it seats in the existing bending station without an adapter. Comparison baseline: a third-party mould, which needs an adapter and re-alignment of the bending axis.
